770-273

Name: 770-273
Brand: WAGO
SKU: 770-273

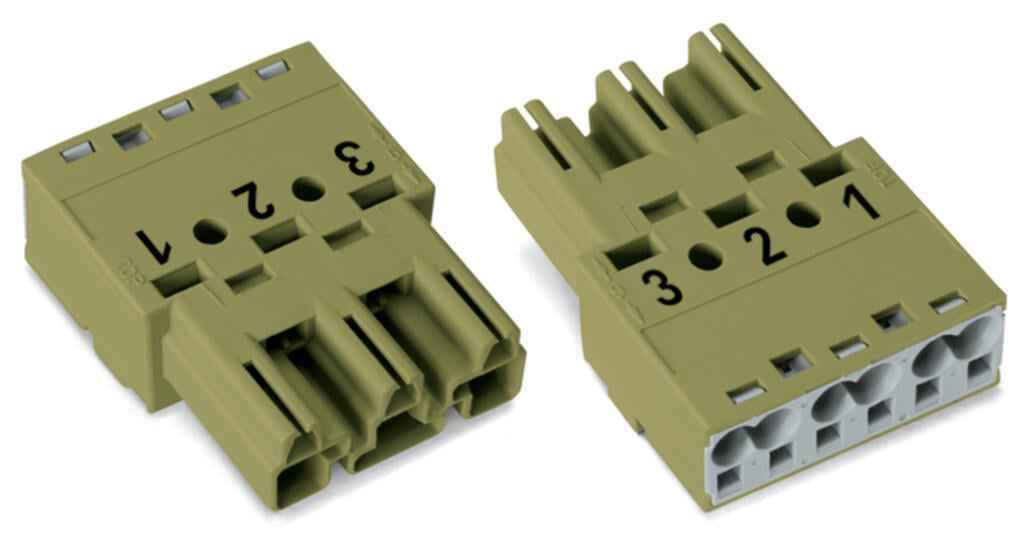

3-position terminal block plug with B coding for rapid, structured electrical installation.

Product Model770-273

Product ID111081

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
{Point 1Simple circuits with B coding for use in process automation}, {Point 2: Ready to install and use immediately}, {Point 3: Rapid, structured electrical installation}, {Point 4: Suitable for lighting technology and robotics applications}, {Point 5: Compliant with RoHS and various international standards}

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Variants:

Other pole markings

Clamping units

Total number of potentials

Pin spacing

10 mm / 0.394 inches

Width

30 mm / 1.181 inches

Height

12.9 mm / 0.508 inches

Protection type

IP20; When mated and secured with a strain relief housing: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)

Contact type (pluggable connector)

Male connector/plug

Note on mismating protection

All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole

Locking lever

Can be retrofitted

Locking of plug-in connection

locking lever

Note on locking system

All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket).

Legend (ratings)

(III / 3) ≙ Overvoltage category III / Pollution degree 3

Note for the US market

Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 16 A and voltages up to 600 V. For further information, please contact your local sales office.
