pun-h-1/4-sw-500-ha

Name: pun-h-1/4-sw-500-ha
Brand: FESTO
SKU: pun-h-1/4-sw-500-ha

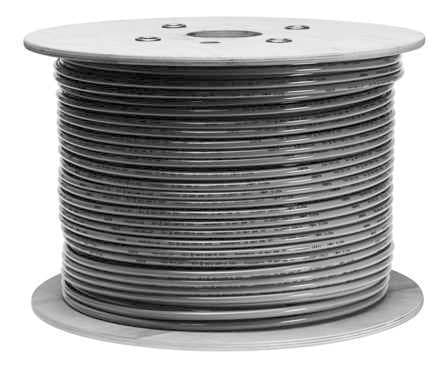

The Festo PUN-H-1/4-SW-500-HA plastic tubing is a versatile and reliable component for pneumatic systems. It offers excellent flexibility and durability, making it suitable for a variety of applications.

Product Modelpun-h-1/4-sw-500-ha

Material Number568018

Product ID111016

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
High Flexibility and DurabilityThe PUN-H-1/4-SW-500-HA plastic tubing is engineered to provide high flexibility and durability, ensuring it can withstand various operating conditions without compromising performance.
2
Flow-Relevant Bending RadiusWith a flow-relevant bending radius of 0.085 feet, this tubing is optimized for efficient fluid flow, ensuring minimal pressure drop and optimal system performance.
3
Min. Bending RadiusThe minimum bending radius of 0.032 feet allows for tight turns and complex routing, making it ideal for applications with limited space.
4
TPE-U Ether Based Application NoteDesigned for TPE-U ether-based applications, this tubing is suitable for use in systems requiring high chemical resistance and flexibility.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

External-Ã˜ inches

1/4

Bending radius relevant for flow rate

25.908mm

Min. bending radius

9.754mm

Application note

TPE-U Ether based

Tubing characteristics

Suitable for energy chains

Temperature-dependent operating pressure

-0.993bar 9.997bar

Easy InstallationThe PUN-H-1/4-SW-500-HA plastic tubing features a smooth, easy-to-handle design, making installation straightforward and efficient.

Information on operating pressure

Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)

Material fire test

UL94 HB

LABS (PWIS) conformity

VDMA24364-B2-L

Suitability for the production of Li-ion batteries

Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils

Cleanroom class

Statically installed element, no meaningful evaluation possible according to ISO 14644-1

For use in the food industry

See supplementary material information

Ambient temperature

-35°C 63°C

Product weight by length

0.23kg/m

Pneumatic connection

For plug connection outside diameter 1/4

Color

Black

Shore hardness

D 52 +/-3

Note on materials

RoHS-compliant

Material of pneumatic tubing

TPE-U(PU)

Manufacturer ID

568018
