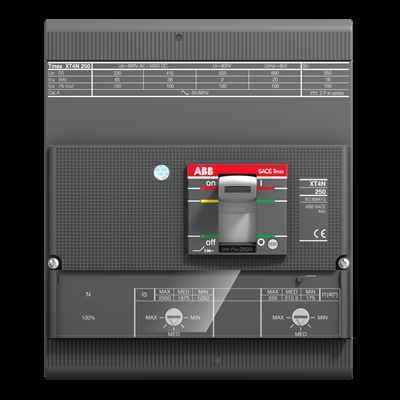

XT4N160 TMA63/630 PMP 4P

Name: XT4N160 TMA63/630 PMP 4P
Brand: ABB
SKU: XT4N160 TMA63/630 PMP 4P

The ABB XT4N160 TMA 63-630 4P is a robust, 4-pole molded case circuit breaker with a thermal-magnetic trip unit, rated for 63-630 A. It ensures reliable electrical distribution in industrial settings.

Product ModelXT4N160 TMA63/630 PMP 4P

Material Number2TFH101712R1001

Product ID110766

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. Reliable PerformanceThe XT4N160 TMA 63-630 4P is engineered to provide consistent and reliable performance, ensuring the safety and efficiency of your electrical system.
2
2. Thermal-Magnetic Trip UnitEquipped with a thermal-magnetic trip unit, this circuit breaker offers adjustable sensitivity, allowing for precise control over the tripping mechanism to suit various application requirements.
3
3. High Current RatingWith a rated current range of 63-630 A, this circuit breaker is suitable for a wide range of industrial applications, from small to large-scale electrical installations.
4
4. 4-Pole ConfigurationThe 4-pole design allows for efficient distribution of electrical power, making it ideal for systems requiring multiple phases.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Environmental Information

9AKK108467A6707

Product Main Type

SACE Tmax XT

Product Name

Moulded Case Circuit Breaker

Product Type

Automatic Circuit Breaker

Version

Current Type

AC/DC

5. Compliance with International StandardsThe XT4N160 TMA 63-630 4P meets IEC standards, ensuring compliance with international safety and performance regulations, thereby enhancing the credibility and reliability of your electrical infrastructure.

Electrical Durability

8000 cycle 120 cycles per hour

Mechanical Durability

25000 cycle 240 cycles per hour

Number of Poles

Power Loss

at Rated Operating Conditions per Pole 5.7 W

Rated Current (In)

63 A

Rated Impulse Withstand Voltage (Uimp)

8 kV

Rated Insulation Voltage (Ui)

1000 V

Rated Operational Voltage

690 V AC 750 V DC

Rated Service Short-Circuit Breaking Capacity (Ics)

(220 V AC) 65 kA (230 V AC) 65 kA (240 V AC) 65 kA (380 V AC) 36 kA (415 V AC) 36 kA (440 V AC) 36 kA (500 V AC) 30 kA (525 V AC) 20 kA (690 V AC) 10 kA (250 V DC) 2 Poles in Series 36 kA (500 V DC) 2 Poles in Series 36 kA (500 V DC) 3 Poles in Series 36 kA

Rated Ultimate Short-Circuit Breaking Capacity (Icu)

Rated Uninterrupted Current (Iu)

160 A

Release

TMA

Release Type

Remarks

ATLAS

Short-Circuit Performance Level

Standards

IEC60947-2 GB/T 14028.2

Sub-type

XT4

Terminal Connection Type

Plug-In Circuit-Breakers

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

Manufacturer ID

2TFH101712R1001
