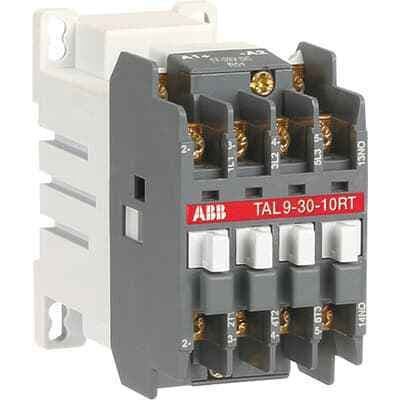

TAL9-30-01RT 17-32V DC

Name: TAL9-30-01RT 17-32V DC
Brand: ABB
SKU: TAL9-30-01RT 17-32V DC

The ABB TAL9-30-01RT 17-32V DC Contactor is designed for controlling DC circuits with 3 main poles and low consumption DC coils. It offers a wide coil voltage range, making it suitable for various applications like motor control and isolation.

Product ModelTAL9-30-01RT 17-32V DC

Material Number1SBL143060R5101

Product ID110699

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. Efficient DC ControlThe TAL9-30-01RT contactor is designed to efficiently control DC circuits, ensuring reliable operation in a variety of applications.
2
2. Wide Coil Voltage RangeWith a coil voltage range of 17-32V DC, this contactor can operate in a wide range of voltage conditions, making it versatile for different applications.
3
3. Low Consumption DC CoilsThe low consumption DC coils reduce energy usage, making the TAL9-30-01RT an energy-efficient solution for your control needs.
4
4. 3 Main PolesThe contactor features 3 main poles, allowing for robust control of power circuits up to 690V AC or 220V DC, making it suitable for controlling 3-phase motors.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Product Net Width

44 mm

Product Net Depth / Length

97 mm

Product Net Height

78 mm

Product Net Weight

0.52 kg

Number of Main Contacts NO

Number of Main Contacts NC

5. Reliable OperationBuilt with solid core magnet circuitry, the TAL9-30-01RT contactor ensures reliable operation and long-lasting performance in demanding control applications.

Number of Auxiliary Contacts NO

Number of Auxiliary Contacts NC

Rated Operational Voltage

Auxiliary Circuit 690 V Main Circuit 690 V

Rated Frequency (f)

Auxiliary Circuit 50 / 60 Hz Main Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (Ith)

acc. to IEC 60947-4-1, Open Contactors Î = 40 Â°C 26 A acc. to IEC 60947-5-1, Î = 40 Â°C 16 A

Rated Operational Current AC-1 (Ie)

(690 V) 40 Â°C 25 A (690 V) 55 Â°C 22 A (690 V) 70 Â°C 18 A

Rated Operational Current AC-3 (Ie)

(415 V) 55 Â°C 9 A (440 V) 55 Â°C 9 A (500 V) 55 Â°C 9 A (690 V) 55 Â°C 7 A (380 / 400 V) 55 Â°C 9 A (220 / 230 / 240 V) 55 Â°C 9 A

Rated Operational Power AC-3 (Pe)

(415 V) 4 kW (440 V) 4 kW (500 V) 5.5 kW (690 V) 5.5 kW (380 / 400 V) 4 kW (220 / 230 / 240 V) 2.2 kW

Rated Breaking Capacity AC-3

8 x Ie AC-3

Rated Making Capacity AC-3

10 x Ie AC-3

Rated Operational Current AC-15 (Ie)

(500 V) 2 A (690 V) 2 A (24 / 127 V) 6 A (220 / 240 V) 4 A (380 / 400 V) 3 A

Short-Circuit Protective Devices

Auxiliary Circuit - gG Type Fuses 10 A gG Type Fuses 25 A

Rated Short-time Withstand Current Low Voltage (Icw)

at 40 Â°C Ambient Temp, in Free Air, from a Cold State 10 s 100 A at 40 Â°C Ambient Temp, in Free Air, from a Cold State 15 min 26 A at 40 Â°C Ambient Temp, in Free Air, from a Cold State 1 min 50 A at 40 Â°C Ambient Temp, in Free Air, from a Cold State 1 s 250 A at 40 Â°C Ambient Temp, in Free Air, from a Cold State 30 s 60 A for 0.1 s 140 A for 1 s 100 A

Maximum Breaking Capacity

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 A cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 100 A

Maximum Electrical Switching Frequency

(AC-1) 600 cycles per hour (AC-2 / AC-4) 300 cycles per hour (AC-3) 1200 cycles per hour

Rated Operational Current DC-13 (Ie)

(24 V) 6 A / 144 W (48 V) 2.8 A / 134 W (72 V) 2 / 144 W (110 V) 1.1 A / 121 W (125 V) 1.1 / 138 W (220 V) 0.55 A / 121 W (250 V) 0.55 / 138 W

Rated Insulation Voltage (Ui)

acc. to IEC 60947-4-1 690 V acc. to IEC 60947-5-1 690 V acc. to UL/CSA 600 V

Rated Impulse Withstand Voltage (Uimp)

6 kV

Mechanical Durability

10 million

Maximum Mechanical Switching Frequency

3600 cycles per hour

Rated Control Circuit Voltage (Uc)

DC Operation 17 ... 32 V

Coil Consumption

Holding DC (Umin / Umax) 2.5 / 8.5 W Pull-in DC (Umin / Umax) 2.5 / 8.5 W

Operate Time

Between Coil De-energization and NC Contact Closing 16 ... 27 ms Between Coil De-energization and NO Contact Opening 10 ... 17 ms Between Coil Energization and NC Contact Opening 20 ... 70 ms Between Coil Energization and NO Contact Closing 50 ... 100 ms

Mounting on DIN Rail

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting by Screws (not supplied)

2 x M4 screws placed diagonally

Connecting Capacity Main Circuit

Flexible with Cable Lug 0.75 ... 2.5 mmÂ² Rigid Cable 0.75 ... 2.5 mmÂ²

Connecting Capacity Auxiliary Circuit

Rigid or Flexible with Cable Lug 0.75 ... 2.5 mmÂ²

Degree of Protection

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP10 acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP10 acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10

Connecting Terminals (delivered in open position) Main Poles

M 3.5 (+,-) pozidriv 2 screw with conic washer

Terminal Type

Ring-Tongue Terminals

General Use Rating UL/CSA

(600 V AC) 21 A

Horsepower Rating UL/CSA

(200 ... 208 V AC) Three Phase 2 hp (220 ... 240 V AC) Three Phase 2 hp (440 ... 480 V AC) Three Phase 5 hp (550 ... 600 V AC) Three Phase 7-1/2 hp

Ambient Air Temperature

Close to Contactor without Thermal O/L Relay -40 ... 55 Â°C Close to Contactor without Thermal O/L Relay (Ucmin-Ucmax) according to IEC 60077 -40 ... +70 Â°C Close to Contactor for Storage -60 ... +80 Â°C

Climatic Withstand

acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II

Maximum Operating Altitude Permissible

Without Derating 3000 m

Resistance to Shock acc. to IEC 60068-2-27

Closed, Shock Direction: A 20 g Closed, Shock Direction: B1 15 g Closed, Shock Direction: C1 20 g Closed, Shock Direction: C2 14 g Open, Shock Direction: A 10 g Open, Shock Direction: B1 5 g Open, Shock Direction: C1 8 g Open, Shock Direction: C2 8 g Shock Direction: B2 10 g

Object Classification Code

ETIM 7

EC000066 - Power contactor, AC switching

ETIM 8

EC000066 - Power contactor, AC switching

ETIM 9

EC000066 - Power contactor, AC switching

eClass

V11.0 : 27371003

UNSPSC

39121529

Manufacturer ID

1SBL143060R5101
