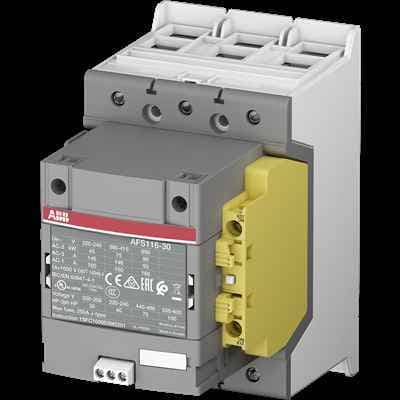

Name: AFS116-30-12-33
Brand: ABB
SKU: AFS116-30-12-33

The ABB AFS116-30-12-33 is a versatile 3 pole contactor with pre-mounted auxiliary contacts, suitable for controlling motors up to 55 kW and switching power circuits up to 160 A. It operates within a wide control voltage range (100-250 V, 50/60 Hz) and includes built-in surge protection, making it ideal for various industrial applications.

Product ModelAFS116-30-12-33

Material Number1SFL427081R3312

Product ID110687

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. Wide Control Voltage RangeThe AFS116-30-12-33 operates within a wide control voltage range of 100-250 V, 50/60 Hz, ensuring it can manage large control voltage variations and reduce panel energy consumption.
2
2. Built-in Surge ProtectionThis contactor features built-in surge protection, providing a compact and reliable solution for your industrial needs, ensuring the safe operation of your machinery.
3
3. Pre-Mounted Auxiliary ContactsThe AFS116-30-12-33 comes with pre-mounted auxiliary contacts, including one left (1 N.O + 1 N.C.) and one right (1 N.C.) side-mounted auxiliary contact block, making it easy to integrate into your system.
4
4. High Power HandlingDesigned to control motors up to 55 kW (75 hp at 480 V UL) and switch power circuits up to 160 A, this contactor is suitable for a wide range of industrial applications.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Product Net Width

90 mm

Product Net Depth / Length

126 mm

Product Net Height

150 mm

Product Net Weight

1.55 kg

Number of Main Contacts NO

Number of Main Contacts NC

5. Compliance with Safety StandardsThe AFS116-30-12-33 complies with main standards EN ISO 13849 and EN 62061, ensuring the safe use of your machinery and equipment in compliance with international safety regulations.

Number of Auxiliary Contacts NO

Number of Auxiliary Contacts NC

Rated Operational Voltage

Main Circuit 690 V

Rated Frequency (f)

Main Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (Ith)

acc. to IEC 60947-4-1, Open Contactors Î = 40 Â°C 160 A

Rated Operational Current AC-1 (Ie)

(690 V) 40 Â°C 160 A (690 V) 60 Â°C 145 A (690 V) 70 Â°C 130 A

Rated Operational Current AC-3 (Ie)

(415 V) 60 Â°C 116 A (440 V) 60 Â°C 116 A (500 V) 60 Â°C 110 A (690 V) 60 Â°C 65 A (380 / 400 V) 60 Â°C 116 A (220 / 230 / 240 V) 60 Â°C 116 A

Rated Operational Current AC-3e (Ie)

(415 V) 60 Â°C 116 A (440 V) 60 Â°C 116 A (500 V) 60 Â°C 110 A (690 V) 60 Â°C 65 A (380 / 400 V) 60 Â°C 116 A (220 / 230 / 240 V) 60 Â°C 116 A

Rated Operational Power AC-3 (Pe)

(415 V) 55 kW (440 V) 75 kW (500 V) 75 kW (690 V) 55 kW (380 / 400 V) 55 kW (220 / 230 / 240 V) 30 kW

Rated Operational Power AC-3e (Pe)

(415 V) 55 kW (440 V) 75 kW (500 V) 75 kW (690 V) 55 kW (380 / 400 V) 55 kW (220 / 230 / 240 V) 30 kW

Rated Breaking Capacity AC-3

8 x Ie AC-3

Rated Breaking Capacity AC-3e

8.5 x Ie AC-3e

Rated Making Capacity AC-3

10 x Ie AC-3

Rated Making Capacity AC-3e

12 x Ie AC-3e

Short-Circuit Protective Devices

gG Type Fuses 250 A

Rated Short-time Withstand Current Low Voltage (Icw)

at 40 Â°C Ambient Temp, in Free Air, from a Cold State 10 s 928 A at 40 Â°C Ambient Temp, in Free Air, from a Cold State 15 min 160 A at 40 Â°C Ambient Temp, in Free Air, from a Cold State 1 min 379 A at 40 Â°C Ambient Temp, in Free Air, from a Cold State 1 s 1160 A at 40 Â°C Ambient Temp, in Free Air, from a Cold State 30 s 536 A

Maximum Breaking Capacity

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 2000 A cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 1000 A

Maximum Electrical Switching Frequency

(AC-1) 300 cycles per hour (AC-2 / AC-4) 150 cycles per hour (AC-3) 300 cycles per hour

Rated Operational Current DC-1 (Ie)

(110 V) 2 Poles in Series, 40 Â°C 145 A (220 V) 3 Poles in Series, 40 Â°C 145 A

Rated Operational Current DC-3 (Ie)

(110 V) 2 Poles in Series, 40 Â°C 145 A (220 V) 3 Poles in Series, 40 Â°C 145 A

Rated Operational Current DC-5 (Ie)

(110 V) 2 Poles in Series, 40 Â°C 145 A (220 V) 3 Poles in Series, 40 Â°C 145 A

Rated Insulation Voltage (Ui)

acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V acc. to UL/CSA 600 V

Rated Impulse Withstand Voltage (Uimp)

Main Circuit 8 kV

Mechanical Durability

5 million

Maximum Mechanical Switching Frequency

300 cycles per hour

Coil Operating Limits

(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at Î¸ â¤ 70 Â°C)

Rated Control Circuit Voltage (Uc)

50 Hz 100 ... 250 V 60 Hz 100 ... 250 V DC Operation 100 ... 250 V

Coil Consumption

Holding at Max. Rated Control Circuit Voltage 50 Hz 6 VÂ·A Holding at Max. Rated Control Circuit Voltage 60 Hz 6 VÂ·A Holding at Max. Rated Control Circuit Voltage DC 2.5 W Pull-in at Max. Rated Control Circuit Voltage 50 Hz 130 VÂ·A Pull-in at Max. Rated Control Circuit Voltage 60 Hz 130 VÂ·A Pull-in at Max. Rated Control Circuit Voltage DC 135 W

Operate Time

Between Coil De-energization and NO Contact Opening 37 ... 47 ms Between Coil Energization and NO Contact Closing 25 ... 55 ms

Connecting Capacity Main Circuit

Flexible 2 x 10 ... 70 mmÂ² Rigid Cu-Cable 1 x 10 ... 95 mmÂ²

Connecting Capacity Auxiliary Circuit

Flexible with Ferrule 2x 0.75 ... 2.5 mmÂ² Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mmÂ² Flexible 2x0.75 ... 2.5 mmÂ² Solid 2 x 1 ... 4 mmÂ² Stranded 2 x 1 .... 4 mmÂ²

Degree of Protection

acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00

Terminal Type

Double Clamp

Maximum Operating Voltage UL/CSA

Main Circuit 600 V

General Use Rating UL/CSA

(600 V AC) 160 A

Horsepower Rating UL/CSA

(200 ... 208 V AC) Three Phase 30 hp (220 ... 240 V AC) Three Phase 40 hp (440 ... 480 V AC) Three Phase 75 hp (550 ... 600 V AC) Three Phase 100 hp

Ambient Air Temperature

Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 Â°C Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 Â°C Close to Contactor for Storage -40 ... 70 Â°C

Maximum Operating Altitude Permissible

Without Derating 3000 m

Object Classification Code

ETIM 7

EC000066 - Power contactor, AC switching

ETIM 8

EC000066 - Power contactor, AC switching

ETIM 9

EC000066 - Power contactor, AC switching

eClass

V11.0 : 27371003

UNSPSC

39121529

IDEA Granular Category Code (IGCC)

4758 >> Iec Contactors

E-Number (Finland)

3708094

Manufacturer ID

1SFL427081R3312
