AF12Z-30-10-21

Name: AF12Z-30-10-21
Brand: ABB
SKU: AF12Z-30-10-21

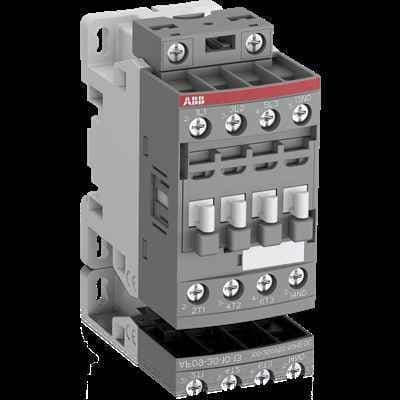

The ABB AF12Z-30-10-21 is a 3-pole contactor ideal for controlling motors up to 5.5 kW. It features a built-in auxiliary contact and screw terminals, ensuring efficient and reliable operation in industrial settings.

Product ModelAF12Z-30-10-21

Material Number1SBL156001R2110

Product ID110653

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. Efficient Motor ControlThe AF12Z-30-10-21 contactor is designed to control motors efficiently, making it suitable for a wide range of industrial applications.
2
2. High Voltage CapabilityOperating at 690 V AC and 220 V DC, this contactor can handle high voltage requirements with ease, ensuring reliable performance in demanding environments.
3
3. Built-in Auxiliary ContactThe contactor includes a built-in auxiliary contact, which simplifies the control circuit and enhances the overall efficiency of the system.
4
4. Durable ConstructionWith its robust design and high-quality materials, the AF12Z-30-10-21 contactor is built to last, reducing the need for frequent replacements and minimizing downtime.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Product Net Width

45 mm

Product Net Depth / Length

77 mm

Product Net Height

86 mm

Product Net Weight

0.31 kg

Number of Main Contacts NO

Number of Main Contacts NC

5. Easy InstallationThe contactor features screw terminals, making installation straightforward and hassle-free. This reduces the time and effort required for setup, allowing you to get back to work quickly.

Number of Auxiliary Contacts NO

Number of Auxiliary Contacts NC

Standards

IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1

Rated Operational Voltage

Auxiliary Circuit 690 V Main Circuit 690 V

Rated Frequency (f)

Auxiliary Circuit 50 / 60 Hz Control Circuit 50 / 60 Hz Main Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (Ith)

acc. to IEC 60947-4-1, Open Contactors Î = 40 Â°C 35 A acc. to IEC 60947-5-1, Î = 40 Â°C 16 A

Rated Operational Current AC-1 (Ie)

(690 V) 40 Â°C 28 A (690 V) 60 Â°C 28 A (690 V) 70 Â°C 24 A

Rated Operational Current AC-3 (Ie)

(415 V) 60 Â°C 12 A (440 V) 60 Â°C 12 A (500 V) 60 Â°C 12.5 A (690 V) 60 Â°C 9 A (380 / 400 V) 60 Â°C 12 A (220 / 230 / 240 V) 60 Â°C 12 A

Rated Operational Current AC-3e (Ie)

(415 V) 60 Â°C 12 A (440 V) 60 Â°C 12 A (500 V) 60 Â°C 12.5 A (690 V) 60 Â°C 9 A (380 / 400 V) 60 Â°C 12 A (220 / 230 / 240 V) 60 Â°C 12 A

Rated Operational Power AC-3 (Pe)

(400 V) 5.5 kW (415 V) 5.5 kW (440 V) 5.5 kW (500 V) 7.5 kW (690 V) 7.5 kW (380 / 400 V) 5.5 kW (220 / 230 / 240 V) 3 kW

Rated Operational Power AC-3e (Pe)

(415 V) 5.5 kW (440 V) 5.5 kW (500 V) 7.5 kW (690 V) 7.5 kW (380 / 400 V) 5.5 kW (220 / 230 / 240 V) 3 kW

Rated Operational Current AC-15 (Ie)

(500 V) 2 A (690 V) 2 A (24 / 127 V) 6 A (220 / 240 V) 4 A (400 / 440 V) 3 A

Rated Short-time Withstand Current Low Voltage (Icw)

at 40 Â°C Ambient Temp, in Free Air, from a Cold State 10 s 150 A at 40 Â°C Ambient Temp, in Free Air, from a Cold State 15 min 35 A at 40 Â°C Ambient Temp, in Free Air, from a Cold State 1 min 60 A at 40 Â°C Ambient Temp, in Free Air, from a Cold State 1 s 300 A at 40 Â°C Ambient Temp, in Free Air, from a Cold State 30 s 80 A for 0.1 s 140 A for 1 s 100 A

Maximum Breaking Capacity

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 A cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 106 A

Maximum Electrical Switching Frequency

(AC-1) 600 cycles per hour (AC-15) 1200 cycles per hour (AC-2 / AC-4) 300 cycles per hour (AC-3) 1200 cycles per hour (DC-13) 900 cycles per hour

Rated Operational Current DC-1 (Ie)

(110 V) 1-Pole, 40 Â°C 15 A (110 V) 1-Pole, 60 Â°C 15 A (110 V) 1-Pole, 70 Â°C 15 A (110 V) 2 Poles in Series, 40 Â°C 27 A (110 V) 2 Poles in Series, 60 Â°C 27 A (110 V) 2 Poles in Series, 70 Â°C 24 A (110 V) 3 Poles in Series, 40 Â°C 27 A (110 V) 3 Poles in Series, 60 Â°C 27 A (110 V) 3 Poles in Series, 70 Â°C 24 A (220 V) 2 Poles in Series, 40 Â°C 15 A (220 V) 2 Poles in Series, 60 Â°C 15 A (220 V) 2 Poles in Series, 70 Â°C 15 A (220 V) 3 Poles in Series, 40 Â°C 27 A (220 V) 3 Poles in Series, 60 Â°C 27 A (220 V) 3 Poles in Series, 70 Â°C 24 A (72 V) 1-Pole, 40 Â°C 27 A (72 V) 1-Pole, 60 Â°C 27 A (72 V) 1-Pole, 70 Â°C 24 A (72 V) 2 Poles in Series, 40 Â°C 27 A (72 V) 2 Poles in Series, 60 Â°C 27 A (72 V) 2 Poles in Series, 70 Â°C 24 A (72 V) 3 Poles in Series, 40 Â°C 27 A (72 V) 3 Poles in Series, 60 Â°C 27 A (72 V) 3 Poles in Series, 70 Â°C 24 A

Rated Operational Current DC-3 (Ie)

(110 V) 1-Pole, 40 Â°C 7 A (110 V) 1-Pole, 60 Â°C 7 A (110 V) 1-Pole, 70 Â°C 7 A (110 V) 2 Poles in Series, 40 Â°C 27 A (110 V) 2 Poles in Series, 60 Â°C 27 A (110 V) 2 Poles in Series, 70 Â°C 24 A (110 V) 3 Poles in Series, 40 Â°C 27 A (110 V) 3 Poles in Series, 60 Â°C 27 A (110 V) 3 Poles in Series, 70 Â°C 24 A (220 V) 2 Poles in Series, 40 Â°C 7 A (220 V) 2 Poles in Series, 60 Â°C 7 A (220 V) 2 Poles in Series, 70 Â°C 7 A (220 V) 3 Poles in Series, 40 Â°C 27 A (220 V) 3 Poles in Series, 60 Â°C 27 A (220 V) 3 Poles in Series, 70 Â°C 24 A (72 V) 1-Pole, 40 Â°C 27 A (72 V) 1-Pole, 60 Â°C 27 A (72 V) 1-Pole, 70 Â°C 24 A (72 V) 2 Poles in Series, 40 Â°C 27 A (72 V) 2 Poles in Series, 60 Â°C 27 A (72 V) 2 Poles in Series, 70 Â°C 24 A (72 V) 3 Poles in Series, 40 Â°C 27 A (72 V) 3 Poles in Series, 60 Â°C 27 A (72 V) 3 Poles in Series, 70 Â°C 24 A

Rated Operational Current DC-5 (Ie)

(110 V) 1-Pole, 40 Â°C 4 A (110 V) 1-Pole, 60 Â°C 4 A (110 V) 1-Pole, 70 Â°C 4 A (110 V) 2 Poles in Series, 40 Â°C 15 A (110 V) 2 Poles in Series, 60 Â°C 15 A (110 V) 2 Poles in Series, 70 Â°C 15 A (110 V) 3 Poles in Series, 40 Â°C 27 A (110 V) 3 Poles in Series, 60 Â°C 27 A (110 V) 3 Poles in Series, 70 Â°C 24 A (220 V) 2 Poles in Series, 40 Â°C 4 A (220 V) 2 Poles in Series, 60 Â°C 4 A (220 V) 2 Poles in Series, 70 Â°C 4 A (220 V) 3 Poles in Series, 40 Â°C 12 A (220 V) 3 Poles in Series, 60 Â°C 12 A (220 V) 3 Poles in Series, 70 Â°C 12 A (72 V) 1-Pole, 40 Â°C 12 A (72 V) 1-Pole, 60 Â°C 12 A (72 V) 1-Pole, 70 Â°C 12 A (72 V) 2 Poles in Series, 40 Â°C 27 A (72 V) 2 Poles in Series, 60 Â°C 27 A (72 V) 2 Poles in Series, 70 Â°C 24 A (72 V) 3 Poles in Series, 40 Â°C 27 A (72 V) 3 Poles in Series, 60 Â°C 27 A (72 V) 3 Poles in Series, 70 Â°C 24 A

Rated Operational Current DC-13 (Ie)

(24 V) 6 A / 144 W (48 V) 2.8 A / 134 W (72 V) 1 A / 72 W (110 V) 0.55 A / 60 W (125 V) 0.55 A / 69 W (220 V) 0.27 A / 60 W (250 V) 0.27 A / 68 W (400 V) 0.15 A / 60 W (500 V) 0.13 A / 65 W (600 V) 0.1 A / 60 W

Rated Insulation Voltage (Ui)

acc. to IEC 60947-4-1 690 V acc. to IEC 60947-5-1 690 V acc. to UL/CSA 600 V

Rated Impulse Withstand Voltage (Uimp)

6 kV

Maximum Mechanical Switching Frequency

3600 cycles per hour

Rated Control Circuit Voltage (Uc)

50 Hz 24 ... 60 V 60 Hz 24 ... 60 V DC Operation 20 ... 60 V

Operate Time

Between Coil De-energization and NC Contact Closing 13 ... 98 ms Between Coil De-energization and NO Contact Opening 11 ... 95 ms Between Coil Energization and NC Contact Opening 38 ... 90 ms Between Coil Energization and NO Contact Closing 40 ... 95 ms

Mounting on DIN Rail

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting by Screws (not supplied)

2 x M4 screws placed diagonally

Connecting Capacity Main Circuit

Flexible with Ferrule 1/2x 0.75 ... 6 mmÂ² Flexible with Insulated Ferrule 1x 0.75 ... 4 mmÂ² Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mmÂ² Rigid Solid 1/2x 1 ... 4 mmÂ² Rigid Stranded 1/2x 1 ... 6 mmÂ²

Connecting Capacity Auxiliary Circuit

Flexible with Ferrule 1/2x 0.75 ... 2.5 mmÂ² Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mmÂ² Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mmÂ² Rigid Solid 1/2x 1 ... 2.5 mmÂ² Rigid Stranded 1/2x 1 ... 2.5 mmÂ²

Connecting Capacity Control Circuit

Flexible with Ferrule 1/2x 0.75 ... 2.5 mmÂ² Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mmÂ² Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mmÂ² Rigid Solid 1/2x 1 ... 2.5 mmÂ² Rigid Stranded 1/2x 1 ... 2.5 mmÂ²

Wire Stripping Length

Auxiliary Circuit 10 mm Control Circuit 10 mm Main Circuit 10 mm

Degree of Protection

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20

Terminal Type

Screw Terminals

NEMA Size

Continuous Current Rating NEMA

18 A

Horsepower Rating NEMA

(115 V AC) Single Phase 1 Hp (200 V AC) Three Phase 3 Hp (230 V AC) Single Phase 2 Hp (230 V AC) Three Phase 3 Hp (460 V AC) Three Phase 5 Hp (575 V AC) Three Phase 5 Hp

Maximum Operating Voltage UL/CSA

Main Circuit 600 V

General Use Rating UL/CSA

(600 V AC) 28 A

Horsepower Rating UL/CSA

(120 V AC) Single Phase 1 hp (200 ... 208 V AC) Three Phase 3 hp (220 ... 240 V AC) Three Phase 3 hp (240 V AC) Single Phase 2 hp (440 ... 480 V AC) Three Phase 7-1/2 hp (550 ... 600 V AC) Three Phase 10 hp

Connecting Capacity Main Circuit UL/CSA

Rigid Solid 1/2x 16-10 AWG Rigid Stranded 1/2x 16-10 AWG

Connecting Capacity Auxiliary Circuit UL/CSA

Rigid Solid 1/2x 18-14 AWG Rigid Stranded 1/2x 18-14 AWG

Connecting Capacity Control Circuit UL/CSA

Rigid Solid 1/2x 18-14 AWG Rigid Stranded 1/2x 18-14 AWG

Tightening Torque UL/CSA

Auxiliary Circuit 11 inÂ·lb Control Circuit 11 inÂ·lb Main Circuit 13 inÂ·lb

Ambient Air Temperature

Close to Contactor Fitted with Thermal O/L Relay -25 ... 60 Â°C Close to Contactor without Thermal O/L Relay -40 ... 70 Â°C Close to Contactor for Storage -60 ... +80 Â°C

Climatic Withstand

Category B according to IEC 60947-1 Annex Q

Maximum Operating Altitude Permissible

Without Derating 3000 m

Resistance to Shock acc. to IEC 60068-2-27

Closed, Shock Direction: B1 25 g Open, Shock Direction: B1 5 g Shock Direction: A 30 g Shock Direction: B2 15 g Shock Direction: C1 25 g Shock Direction: C2 25 g

Resistance to Vibrations

4g Closed Position & 2g Open position 5 ... 300 Hz

Object Classification Code

ETIM 7

EC000066 - Power contactor, AC switching

ETIM 8

EC000066 - Power contactor, AC switching

ETIM 9

EC000066 - Power contactor, AC switching

eClass

V11.0 : 27371003

UNSPSC

39121529

IDEA Granular Category Code (IGCC)

4758 >> Iec Contactors

E-Number (Finland)

3706231

E-Number (Sweden)

3211360

Manufacturer ID

1SBL156001R2110
