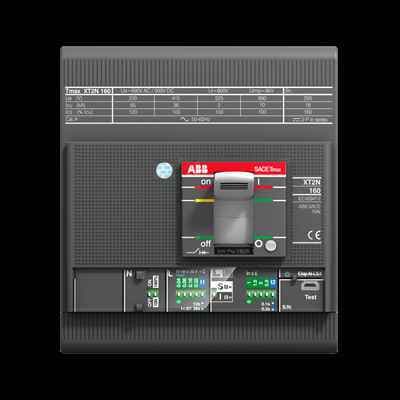

XT2V 160 Ekip Dip LIG In=10A 4p F F

Name: XT2V 160 Ekip Dip LIG In=10A 4p F F
Brand: ABB
SKU: XT2V 160 Ekip Dip LIG In=10A 4p F F

The ABB XT2V 160 Ekip Dip LIG In=10A 4p F F is a fixed four-pole circuit breaker with front terminals and a solid-state release mechanism, ideal for AC power distribution in industrial settings.

Product ModelXT2V 160 Ekip Dip LIG In=10A 4p F F

Material Number1SDA101953R1

Product ID110633

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. Reliable OperationThe XT2V 160 Ekip Dip LIG In=10A 4p F F is designed to provide reliable operation under various electrical conditions, ensuring consistent performance in demanding environments.
2
2. Efficient Power DistributionWith its front terminals and solid-state release mechanism, this circuit breaker facilitates efficient power distribution, reducing energy losses and improving overall system efficiency.
3
3. High DurabilityBuilt to withstand 240 cycles per hour and 25,000 cycles in total, this circuit breaker offers exceptional mechanical durability, extending its lifespan and reducing maintenance needs.
4
4. Compliance with StandardsThe XT2V 160 Ekip Dip LIG In=10A 4p F F meets IEC 60947 standards, ensuring compliance with international safety and performance regulations, thereby enhancing user confidence and safety.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Environmental Information

9AKK108467A6707

Product Net Width

120 mm

Product Net Height

130 mm

Product Net Depth / Length

82.5 mm

Product Net Weight

1.3 kg

Circuit Breaker Type to be Associated

Power Distribution

5. Versatile ApplicationSuitable for a wide range of applications including transformer and generator installations, this circuit breaker is versatile and can be easily integrated into various electrical systems, making it a versatile solution for diverse needs.

Product Main Type

SACE Tmax XT

Product Name

Moulded Case Circuit Breaker

Product Type

Automatic Circuit Breaker

Version

CAD Dimensional Drawing

1SDH002230A1002

Current Type

Electrical Durability

120 cycles per hour 8000 cycle

Mechanical Durability

240 cycles per hour 25000 cycle

Number of Poles

Order Multiple

1 piece

Power Loss

at Rated Operating Conditions per Pole 0.1 W

Rated Current (In)

10 A

Rated Impulse Withstand Voltage (Uimp)

8 kV

Rated Insulation Voltage (Ui)

1000 V

Rated Operational Voltage

690 V AC 500 V DC

Rated Service Short-Circuit Breaking Capacity (Ics)

(220 V AC) 200 kA (230 V AC) 200 kA (240 V AC) 200 kA (380 V AC) 150 kA (415 V AC) 150 kA (440 V AC) 150 kA (500 V AC) 70 kA (525 V AC) 50 kA (690 V AC) 15 kA

Rated Ultimate Short-Circuit Breaking Capacity (Icu)

(220 V AC) 200 kA (230 V AC) 200 kA (240 V AC) 200 kA (380 V AC) 150 kA (415 V AC) 150 kA (440 V AC) 150 kA (500 V AC) 70 kA (525 V AC) 50 kA (690 V AC) 20 kA

Rated Uninterrupted Current (Iu)

160 A

Release

Ekip Dip LIG

Release Type

Short-Circuit Performance Level

Standards

IEC60947-2

Sub-type

XT2

Terminal Connection Type

Front

ETIM 8

EC000228 - Power circuit-breaker for trafo/generator/installation protection

ETIM 9

EC000228 - Power circuit-breaker for trafo/generator/installation protection

Object Classification Code

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

eClass

V11.1 : 27370409

Manufacturer ID

1SDA101953R1
