CA4-22M

Name: CA4-22M
Brand: ABB
SKU: CA4-22M

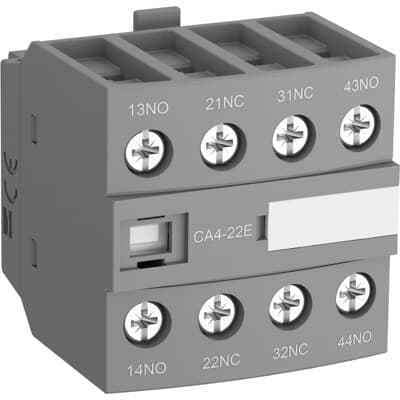

The ABB CA4-22M is a front mount auxiliary contact with screw terminals, offering 2NO/2NC contacts. It is rated for 6A at 600V dc and 690V ac, making it suitable for various electrical applications.

Product ModelCA4-22M

Material Number1SBN010140R1122

Product ID110628

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. Reliable OperationThe ABB CA4-22M ensures reliable operation with its 2NO/2NC contacts, providing consistent performance in electrical systems.
2
2. Versatile ApplicationThis front mount auxiliary contact is designed for a wide range of applications, from industrial control systems to residential electrical installations.
3
3. High Current RatingWith a rating of 6A at 600V dc and 690V ac, the CA4-22M can handle high current requirements, making it a versatile choice for various electrical needs.
4
4. Easy InstallationThe screw terminal design makes installation straightforward, reducing setup time and ensuring quick integration into existing systems.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Product Net Width

43 mm

Product Net Depth / Length

39.5 mm

Product Net Height

43 mm

Product Net Weight

0.055 kg

Number of Auxiliary Contacts NO

Number of Auxiliary Contacts NC

5. Durable ConstructionBuilt with high-quality materials, the CA4-22M is designed to withstand the rigors of continuous use, providing a long-lasting solution for your electrical needs.

IEC/EN 60947-5-1, UL 60947-5-1, CSA C22.2 No. 60947-5-1-14

Rated Operational Voltage

Auxiliary Circuit 690 V

Rated Frequency (f)

Auxiliary Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (Ith)

acc. to IEC 60947-5-1, Î = 40 Â°C 16 A

Rated Operational Current AC-15 (Ie)

(500 V) 2 A (690 V) 2 A (24 / 127 V) 6 A (220 / 240 V) 4 A (400 / 440 V) 3 A

Rated Short-time Withstand Current Low Voltage (Icw)

for 0.1 s 140 A for 1 s 100 A

Maximum Electrical Switching Frequency

(AC-15) 1200 cycles per hour (DC-13) 900 cycles per hour

Rated Operational Current DC-13 (Ie)

(24 V) 6 A / 144 W (48 V) 2.8 A / 134 W (72 V) 1 A / 72 W (110 V) 0.55 A / 60 W (125 V) 0.55 A / 69 W (220 V) 0.27 A / 60 W (250 V) 0.27 A / 68 W (400 V) 0.15 A / 60 W (500 V) 0.13 A / 65 W (600 V) 0.1 A / 60 W

Rated Insulation Voltage (Ui)

acc. to IEC 60947-5-1 690 V acc. to UL/CSA 600 V

Rated Impulse Withstand Voltage (Uimp)

6 kV

Maximum Mechanical Switching Frequency

3600 cycles per hour

Connecting Capacity Auxiliary Circuit

Flexible with Ferrule 1/2x 0.75 ... 2.5 mmÂ² Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mmÂ² Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mmÂ² Rigid Solid 1/2x 1 ... 2.5 mmÂ² Rigid Stranded 1/2x 1 ... 2.5 mmÂ²

Wire Stripping Length

Auxiliary Circuit 10 mm

Degree of Protection

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

Terminal Type

Screw Terminals

Suitable For

AF09 AF09Z AF12 AF12Z AF16 AF16Z AFC09 AFC12 AFC16 AF09B AF09ZB AF12B AF12ZB AF16B AF16ZB

Connecting Capacity Auxiliary Circuit UL/CSA

Rigid Solid 1/2x 18-14 AWG Rigid Stranded 1/2x 18-14 AWG

Tightening Torque UL/CSA

Auxiliary Circuit 11 inÂ·lb

Object Classification Code

ETIM 7

EC000041 - Auxiliary contact block

ETIM 8

EC000041 - Auxiliary contact block

ETIM 9

EC000041 - Auxiliary contact block

eClass

V11.0 : 27371302

UNSPSC

39121522

IDEA Granular Category Code (IGCC)

4743 >> Auxiliary contact block

E-Number (Finland)

3706515

E-Number (Sweden)

3211420

Manufacturer ID

1SBN010140R1122
