The ABB XT4N 160 Ekip E-LSIG In=160A 4P F F is a high-performance circuit breaker with a solid-state release mechanism and front terminals, suitable for demanding applications.

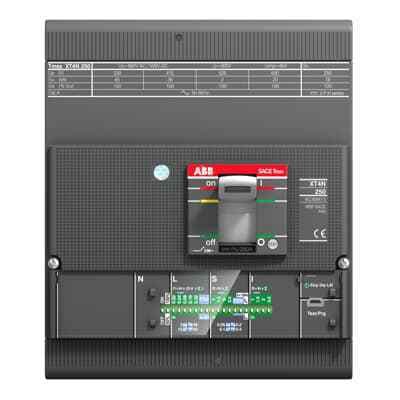

Product ModelXT4N160 I R160 WMP 4P
Material Number2TFH102994R1001
Product ID110440
Stock on Request
Last updated: 8/29/2026
Key Features
1
1. Reliability and EfficiencyThe ABB XT4N 160 Ekip E-LSIG In=160A 4P F F is engineered to provide reliable and efficient performance, making it ideal for critical applications.
2
2. Solid-State Release MechanismEquipped with a solid-state release mechanism, this circuit breaker ensures precise and safe operation, reducing the risk of electrical faults.
3
3. Front TerminalsFeaturing front terminals, the XT4N 160 makes installation and maintenance easier, providing quick access to connections without the need for rear access.
4
4. High Current CapacityWith an input current of 160A, this circuit breaker is designed to handle high current demands, making it suitable for a wide range of industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Environmental Information
9AKK108467A6707
Product Net Width
140.0 mm
Product Net Height
160.0 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
6.76 kg
Product Main Type
SACE Tmax XT
5
5. Compliance with StandardsThe XT4N 160 complies with international standards, ensuring that it meets the highest safety and performance requirements, providing peace of mind for users.
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Version
W
Current Type
AC
Electrical Durability
8000 cycle 120 cycles per hour
Mechanical Durability
25000 cycle 240 cycles per hour
Number of Poles
4P
Power Loss
at Rated Operating Conditions per Pole 11.5 W
Rated Current (In)
160 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 65 kA (230 V AC) 65 kA (240 V AC) 65 kA (380 V AC) 36 kA (415 V AC) 36 kA (440 V AC) 36 kA (500 V AC) 30 kA (525 V AC) 20 kA (690 V AC) 10 kA
(220 V AC) 65 kA (230 V AC) 65 kA (240 V AC) 65 kA (380 V AC) 36 kA (415 V AC) 36 kA (440 V AC) 36 kA (500 V AC) 30 kA (525 V AC) 20 kA (690 V AC) 10 kA
Rated Uninterrupted Current (Iu)
160 A
Release
Ekip I
Release Type
EL
Remarks
ATLAS
Short-Circuit Performance Level
N
Standards
IEC60947-2 GB/T 14028.2
Sub-type
XT4
Terminal Connection Type
Withdrawable Circuit-Breakers
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Manufacturer ID
2TFH102994R1001
