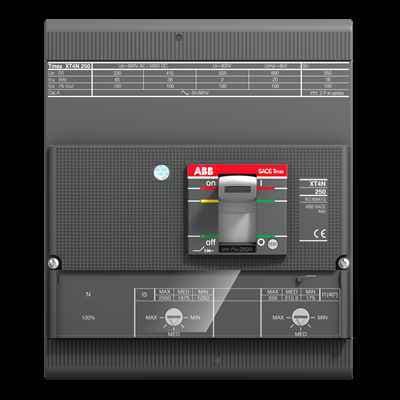

XT4N160 TMD20/300 PMP 4P

Name: XT4N160 TMD20/300 PMP 4P
Brand: ABB
SKU: XT4N160 TMD20/300 PMP 4P

The ABB XT4N160 TMD20/300 PMP 4P is a 4-pole molded case circuit breaker with a rated current of 20A, offering thermal-magnetic protection and adjustable over-current settings. It ensures reliable operation and high durability in electrical systems.

Product ModelXT4N160 TMD20/300 PMP 4P

Material Number2TFH101719R1001

Product ID110414

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. Reliable ProtectionThe XT4N160 TMD20/300 PMP 4P features thermal-magnetic protection, providing comprehensive protection against both overload and short-circuit conditions. This ensures the safety and reliability of your electrical system.
2
2. Adjustable SettingsWith adjustable over-current settings ranging from 14A to 20A, this circuit breaker can be tailored to meet specific application requirements. This flexibility enhances its usability in various electrical configurations.
3
3. High DurabilityDesigned to withstand 8000 operations under load and 25,000 operations at no load, the XT4N160 TMD20/300 PMP 4P is built to last. Its robust construction ensures long-term reliability in demanding environments.
4
4. Compliance with StandardsThe product is compliant with IEC 60947-1 and IEC 60947-2 standards, ensuring it meets the highest safety and performance criteria. Additionally, it adheres to the EC directives for Low Voltage Directive (LVD) and Electromagnetic Compatibility Directive (EMC).

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Environmental Information

9AKK108467A6707

Product Main Type

SACE Tmax XT

Product Name

Moulded Case Circuit Breaker

Product Type

Automatic Circuit Breaker

Version

Current Type

AC/DC

5. Versatile ApplicationSuitable for a wide range of applications including industrial, commercial, and residential settings, the XT4N160 TMD20/300 PMP 4P is a versatile solution for any electrical system. Its 4-pole design supports both AC and DC voltages up to 690V AC and 500V DC.

Electrical Durability

8000 cycle 120 cycles per hour

Mechanical Durability

25000 cycle 240 cycles per hour

Number of Poles

Power Loss

at Rated Operating Conditions per Pole 2.7 W

Rated Current (In)

20 A

Rated Impulse Withstand Voltage (Uimp)

8 kV

Rated Insulation Voltage (Ui)

1000 V

Rated Operational Voltage

690 V AC 750 V DC

Rated Service Short-Circuit Breaking Capacity (Ics)

(220 V AC) 65 kA (230 V AC) 65 kA (240 V AC) 65 kA (380 V AC) 36 kA (415 V AC) 36 kA (440 V AC) 36 kA (500 V AC) 30 kA (525 V AC) 20 kA (690 V AC) 10 kA (250 V DC) 2 Poles in Series 36 kA (500 V DC) 2 Poles in Series 36 kA (500 V DC) 3 Poles in Series 36 kA

Rated Ultimate Short-Circuit Breaking Capacity (Icu)

Rated Uninterrupted Current (Iu)

160 A

Release

TMD

Release Type

Remarks

ATLAS

Short-Circuit Performance Level

Standards

IEC60947-2 GB/T 14028.2

Sub-type

XT4

Terminal Connection Type

Plug-In Circuit-Breakers

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

Manufacturer ID

2TFH101719R1001
