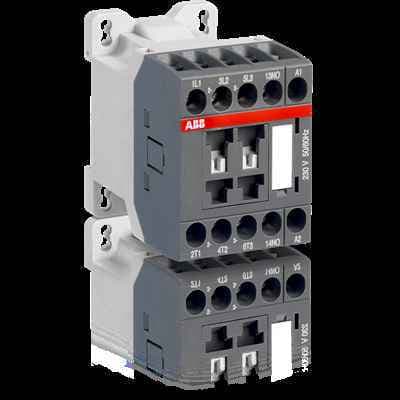

AS09-30-01-20

Name: AS09-30-01-20
Brand: ABB
SKU: AS09-30-01-20

The ABB AS09-30-01-20 is a 3-pole contactor with a 24V coil, designed to control 3-phase motors efficiently. It supports power circuits up to 690V AC or 220V DC, making it suitable for various industrial applications.

Product ModelAS09-30-01-20

Material Number1SBL101001R2001

Product ID110412

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. Efficient Motor ControlThe ABB AS09-30-01-20 contactor is specifically designed to control 3-phase motors, ensuring efficient operation and reliable performance in industrial settings.
2
2. Versatile Power HandlingThis contactor supports power circuits up to 690V AC or 220V DC, making it versatile for a wide range of industrial applications.
3
3. Compact DesignThe contactor clips onto a standard DIN rail, allowing for easy integration into control cabinets without the need for special tools.
4
4. Automated SignalingWith its auxiliary contact, the AS09-30-01-20 automatically signals linked equipment when it switches, enhancing system control and efficiency.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Product Net Width

45 mm

Product Net Depth / Length

72.5 mm

Product Net Height

68 mm

Product Net Weight

0.22 kg

Number of Main Contacts NO

Number of Main Contacts NC

5. Reliability and DurabilityBuilt with high-quality components, this contactor offers reliable and durable performance, ensuring minimal downtime and maximum productivity in industrial environments.

Number of Auxiliary Contacts NO

Number of Auxiliary Contacts NC

Standards

IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508, CSA C22.2 NÂ°14

Rated Operational Voltage

Auxiliary Circuit 690 V Main Circuit 690 V

Rated Frequency (f)

Auxiliary Circuit 50 / 60 Hz Main Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (Ith)

acc. to IEC 60947-4-1, Open Contactors Î = 40 Â°C 22 A acc. to IEC 60947-5-1, Î = 40 Â°C 10 A

Rated Operational Current AC-1 (Ie)

(690 V) 40 Â°C 22 A (690 V) 60 Â°C 18 A (690 V) 70 Â°C 15 A

Rated Operational Current AC-3 (Ie)

(415 V) 60 Â°C 9 A (440 V) 60 Â°C 8 A (500 V) 60 Â°C 8 A (690 V) 60 Â°C 5 A (380 / 400 V) 60 Â°C 9 A (220 / 230 / 240 V) 60 Â°C 9 A

Rated Operational Power AC-3 (Pe)

(400 V) 4 kW (415 V) 4 kW (440 V) 4 kW (500 V) 4 kW (690 V) 4 kW (220 / 230 / 240 V) 2.2 kW

Rated Operational Current AC-15 (Ie)

(500 V) NC 2 (500 V) 2 A (690 V) 2 A (24 / 127 V) 6 A (220 / 240 V) 4 A (400 / 440 V) 3 A

Rated Short-time Withstand Current Low Voltage (Icw)

at 40 Â°C Ambient Temp, in Free Air, from a Cold State 10 s 100 A at 40 Â°C Ambient Temp, in Free Air, from a Cold State 15 min 22 A at 40 Â°C Ambient Temp, in Free Air, from a Cold State 1 min 50 A at 40 Â°C Ambient Temp, in Free Air, from a Cold State 1 s 230 A at 40 Â°C Ambient Temp, in Free Air, from a Cold State 30 s 65 A for 0.1 s 140 A for 1 s 100 A

Maximum Breaking Capacity

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 155 A cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 90 A

Maximum Electrical Switching Frequency

(AC-1) 600 cycles per hour (AC-15) 1200 cycles per hour (AC-2 / AC-4) 300 cycles per hour (AC-3) 1200 cycles per hour (DC-13) 900 cycles per hour

Rated Operational Current DC-13 (Ie)

(24 V) 6 A / 144 W (48 V) 2.8 A / 134 W (72 V) 1 A / 72 W (110 V) 0.55 A / 60 W (125 V) 0.55 A / 69 W (220 V) 0.27 A / 60 W (250 V) 0.27 A / 68 W

Rated Insulation Voltage (Ui)

acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V acc. to UL/CSA 600 V

Rated Impulse Withstand Voltage (Uimp)

Auxiliary Circuit 6 kV

Maximum Mechanical Switching Frequency

3600 cycles per hour

Rated Control Circuit Voltage (Uc)

50 Hz 24 V 60 Hz 24 V

Operate Time

Between Coil De-energization and NC Contact Closing 7 ... 22 ms Between Coil De-energization and NO Contact Opening 5 ... 19 ms Between Coil Energization and NC Contact Opening 6 ... 18 ms Between Coil Energization and NO Contact Closing 9 ... 24 ms

Connecting Capacity Main Circuit

Flexible with Ferrule 1/2x 0.75 ... 2.5 mmÂ² Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mmÂ² Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mmÂ² Rigid 1/2x 0.75 ... 4 mmÂ²

Connecting Capacity Auxiliary Circuit

Flexible with Ferrule 1/2x 0.75 ... 2.5 mmÂ² Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mmÂ² Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mmÂ² Rigid 1/2x 0.75 ... 2.5 mmÂ²

Connecting Capacity Control Circuit

Flexible with Ferrule 1/2x 0.75 ... 2.5 mmÂ² Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mmÂ² Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mmÂ² Rigid 1/2x 0.75 ... 2.5 mmÂ²

Wire Stripping Length

Auxiliary Circuit 9 mm Control Circuit 9 mm Main Circuit 9 mm

Degree of Protection

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20

Terminal Type

Screw Terminals

General Use Rating UL/CSA

(600 V AC) 20 A

Horsepower Rating UL/CSA

(120 V AC) Single Phase 1/3 hp (200 ... 208 V AC) Three Phase 2 hp (220 ... 240 V AC) Three Phase 2 hp (240 V AC) Single Phase 1 hp (440 ... 480 V AC) Three Phase 5 hp (550 ... 600 V AC) Three Phase 7.5 hp

Tightening Torque UL/CSA

Auxiliary Circuit 9 inÂ·lb Control Circuit 9 inÂ·lb Main Circuit 9 inÂ·lb

Ambient Air Temperature

Close to Contactor Fitted with Thermal O/L Relay -25 ... 60 Â°C Close to Contactor without Thermal O/L Relay -40 ... 70 Â°C Close to Contactor for Storage -60 ... +80 Â°C

Climatic Withstand

Category B according to IEC 60947-1 Annex Q

Maximum Operating Altitude Permissible

Without Derating 3000 m

Resistance to Shock acc. to IEC 60068-2-27

Closed, Shock Direction: B1 10 g Closed, Shock Direction: C1 20 g Closed, Shock Direction: C2 20 g Open, Shock Direction: B1 5 g Open, Shock Direction: C1 9 g Open, Shock Direction: C2 14 g Shock Direction: A 20 g Shock Direction: B2 15 g

Resistance to Vibrations

3g Closed Position & 2g Open Position 5 ... 300 Hz

Object Classification Code

ETIM 7

EC000066 - Power contactor, AC switching

ETIM 8

EC000066 - Power contactor, AC switching

ETIM 9

EC000066 - Power contactor, AC switching

eClass

V11.0 : 27371003

UNSPSC

39121529

IDEA Granular Category Code (IGCC)

4761 >> Magnet contactor, AC-switching

E-Number (Sweden)

3210505

Manufacturer ID

1SBL101001R2001
