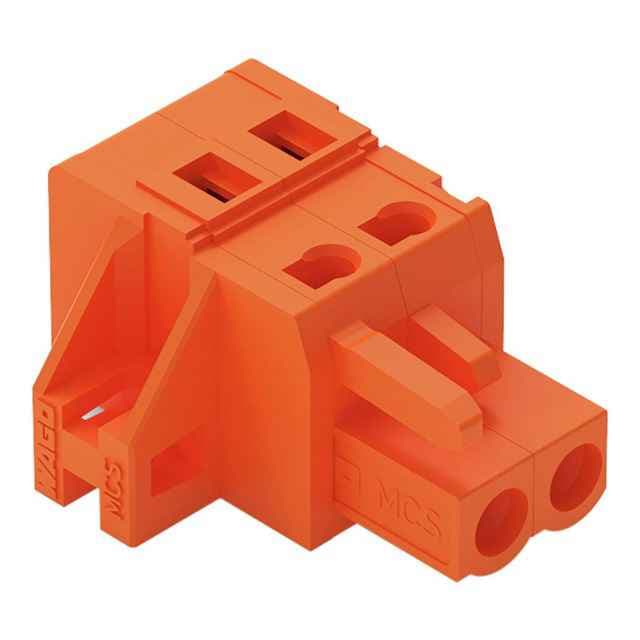

WAGO 231-302/031-000 is a 2-pole, 1-conductor female plug with 5.08 mm pin spacing and CAGE CLAMP® technology.
Product Model231-302/031-000
Product ID110088
Stock on Request
Last updated: 8/29/2026
Key Features
1
FeatureSecure and Reliable Connections
2
Feature5.08 mm Pin Spacing for Compatibility
3
FeatureCAGE CLAMP® Technology for Easy Wiring
4
FeatureROHS Compliant for Environmental Safety
5
FeatureDurable and High-Quality Construction
6
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Safety information
TheMCS MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
Variants:
Gold-plated or partially gold-plated contact surfaces
Clamping units
2
Total number of potentials
2
Number of connection types
1
FeatureSecure and Reliable Connections
7
Feature5.08 mm Pin Spacing for Compatibility
8
FeatureCAGE CLAMP® Technology for Easy Wiring
9
FeatureROHS Compliant for Environmental Safety
10
FeatureDurable and High-Quality Construction
Number of levels
1
Pin spacing
5.08 mm / 0.2 inches
Width
24.96 mm / 0.983 inches
Height
14.3 mm / 0.563 inches
Depth
26.45 mm / 1.041 inches
Variable coding
Yes
Mounting type
Feed-through mounting
Anti-rotation protection
Yes
Contact type (pluggable connector)
Female connector/socket
Connector (connection type)
for conductor
Mismating protection
No
Plugging without loss of pin spacing
No
Locking of plug-in connection
none
Note (material data)
Information on material specifications can be found here
