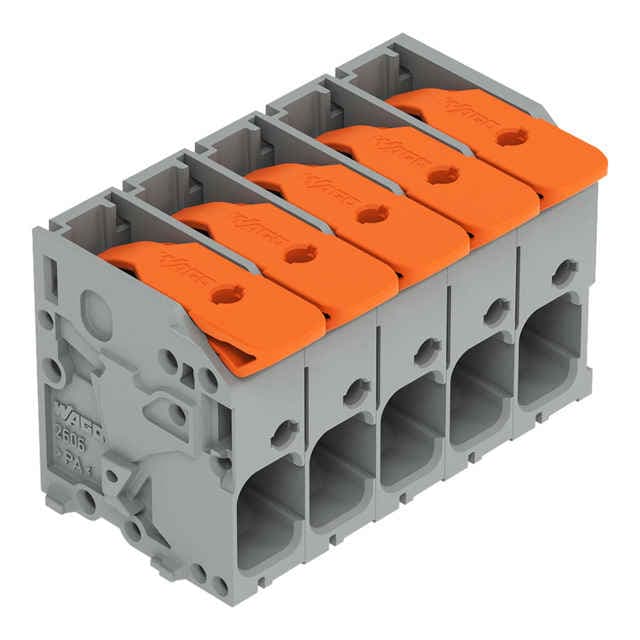

WAGO 2606-1105/020-000 is a 5-pole PCB terminal block with a 7.5mm pitch, featuring a push-in cage clamp connection. It supports wire gauges from AWG 24 to 8 and is RoHS compliant.
Product Model2606-1105
Product ID110077
Stock on Request
Last updated: 8/29/2026
Key Features
1
FeatureTool-Free Operation
2
FeatureHigh Current and Voltage Ratings
3
FeatureWide Operating Temperature Range
4
FeaturePush-In Cage Clamp Connection
5
FeatureCompliance and Safety
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Variants:
Other pole numbers
Clamping units
2
Total number of potentials
5
Number of connection types
1
Number of levels
1
Pin spacing
7.5 mm / 0.295 inches
Width
40.35 mm / 1.589 inches
Height
28 mm / 1.102 inches
Height from the surface
24 mm / 0.945 inches
Depth
24.3 mm / 0.957 inches
Solder pin length
4mm
Solder pin dimensions
1.5 x 1.2 mm
Drilled hole diameter with tolerance
2(+0.1)mm
PCB contact
THT
Solder pin arrangement
over the entire terminal strip (in-line)
Number of solder pins per potential
2
Note (material data)
Information on material specifications can be found here
