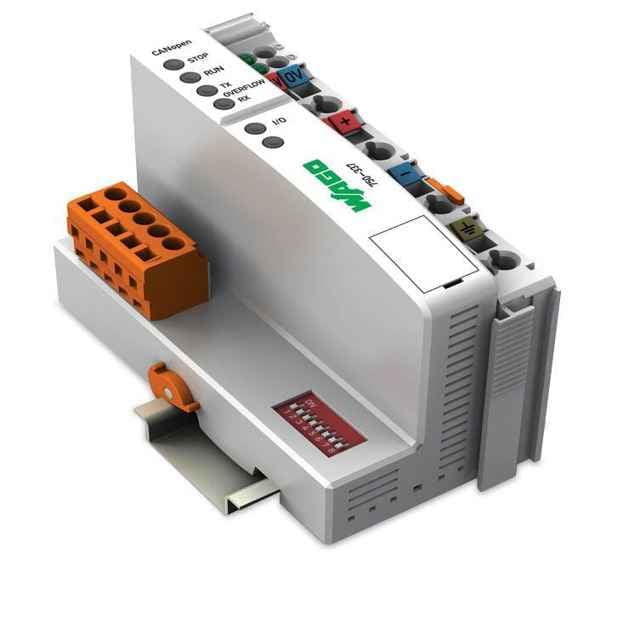

750-337

Name: 750-337
Brand: WAGO
SKU: 750-337

Connects WAGO I/O System to CANopen fieldbus, supports 64 I/O modules, 24Vdc power, and DIN-35 rail mounting.

Product Model750-337

Product ID110076

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
FeatureHigh Connectivity
2
FeatureFlexible Configuration
3
FeatureRobust Design
4
FeatureAdvanced Communication
5
FeatureEasy Installation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Note

Note: Configuration files required (EDS)!

Communications

CANopen

Number of fieldbus nodes on master (max.)

110

Transmission rate

10/1 MBd

Bus segment length (max.)

1000 m

Transmission medium (communication/fieldbus)

Shielded Cu cable 3 x 0.25 mm2

Number of modules per node (max.)

Number of modules without a bus extension (max.)

Other CANopen features

NMT slave

Number of PDOs

32 Tx / 32 Rx

Number of SDOs

2 SDO servers

COB ID distribution

SDO, standard

Node ID distribution

DIP switch

Communication profile

DS-301 V4.1

Device profile

DS-401 V2.0

Input and output process image (fieldbus) max.

512 bytes/512 bytes

Supply voltage (system)

24 VDC (-25 +30 %); via pluggable connector (CAGE CLAMP®connection)

Current consumption (5 V system supply)

350mA

Total current (system supply)

1,650mA

Supply voltage (field)

24 VDC (-25 +30 %); via power jumper contacts

Input current (typ.) at nominal load (24 V)

500mA

Power supply efficiency (typ.) at nominal load (24 V)

87%

Isolation

500 V system/field

Number of outgoing power jumper contacts

Current carrying capacity (power jumper contacts)

10A

Connection technology: communication/fieldbus

CANopen: 1 x Male connector; 5-pole

Connection technology: field supply

6 x CAGE CLAMP®

Connection technology: system supply

2 x CAGE CLAMP®

Connection type 1

System/field supply

Solid conductor

0.08 2.5 mm2 / 28 14 AWG

Fine-stranded conductor

0.08 2.5 mm2 / 28 14 AWG

Strip length

8 9 mm / 0.31 0.35 inches

Connection technology: device configuration

1 x Male connector; 4-pole

Width

50.5 mm / 1.988 inches

Height

100 mm / 3.937 inches

Depth

71.1 mm / 2.799 inches

Depth from upper-edge of DIN-rail

63.9 mm / 2.516 inches

Mounting type

DIN-35 rail

Color

light gray

Housing material

Polycarbonate; polyamide 6.6

Fire load

3.409MJ

Weight

184g

Conformity marking

Ambient temperature (operation)

0 … +55 °C

Ambient temperature (storage)

-25 … +85 °C

Protection type

IP20

Pollution degree

2 per IEC 61131-2

Operating altitude

0 2000 m / 0 6562 ft

Mounting position

Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom

Relative humidity (without condensation)

95%

Vibration resistance

4g per IEC 60068-2-6

Shock resistance

15g per IEC 60068-2-27

EMC immunity to interference

per EN 61000-6-2, marine applications

EMC emission of interference

per EN 61000-6-4, marine applications

Exposure to pollutants

per IEC 60068-2-42 and IEC 60068-2-43

Permissible pollutant concentration H2S at a relative humidity < 75%

10ppm

Permissible pollutant concentration SO 2 at a relative humidity < 75%

25ppm

Product Group

15 (I/O System)

eCl@ss 10.0

27-24-26-07

eCl@ss 9.0

27-24-26-07

ETIM 9.0

EC001603

ETIM 8.0

EC001603

ECCN

NO US CLASSIFICATION

PU (SPU)

1 pcs

Packaging type

Box

Country of origin

Customs tariff number

8517620090

CAS-No.

12060-00-3

REACH Candidate List Substance

2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol

RoHS Compliance Status

Compliant,With Exemption

RoHS Exemption

6(c)
