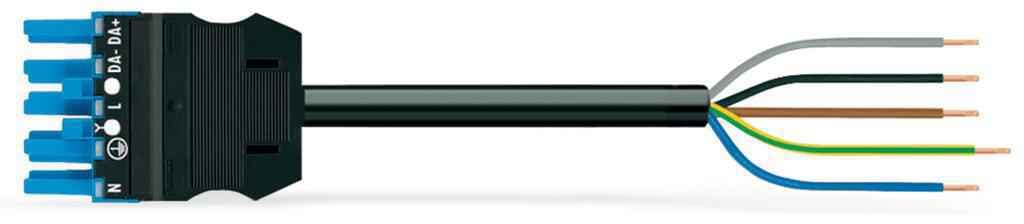

Pre-assembled 5-pole connecting cable with socket/open-ended, 8m long, H05Z1Z1-F 5G 1.5 mm². Ideal for efficient connections.
Product Model771-9385/116-801
Product ID110072
Stock on Request
Last updated: 8/29/2026
Key Features
1
FeaturePre-assembled for quick and easy installation
2
FeatureHigh-quality H05Z1Z1-F 5G 1.5 mm² cable for reliable connections
3
Feature5-pole configuration with Cod. I coding for secure and standardized connections
4
Feature8 meters in length, providing flexibility in various applications
5
FeatureManufactured by WAGO, ensuring high standards of quality and durability
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Note
Cables with a different fire class can be found in the eShop.
Total number of potentials
5
PE function
Preceding PE contact
Conductor preparation
ultrasonically tip-bonded
Pin spacing
10 mm / 0.394 inches
Width
47 mm / 1.85 inches
6
FeaturePre-assembled for quick and easy installation
7
FeatureHigh-quality H05Z1Z1-F 5G 1.5 mm² cable for reliable connections
8
Feature5-pole configuration with Cod. I coding for secure and standardized connections
9
Feature8 meters in length, providing flexibility in various applications
10
FeatureManufactured by WAGO, ensuring high standards of quality and durability
Height
15.38 mm / 0.606 inches
Total length
8m
Use
DALI, Lighting Management
Coding
I
Variable coding
No
Marking
N ⏚ L DA- DA+
Potential Marking
N ⏚ L DA- DA+
Mating force of a plug-in connection
approx. 20 70 N (depending on pole number)
Retention force of a plug-in connection
when locked: > 80N
Unmating force of a plug-in connection
when unlocked: approx. 20 70 N (depending on pole number)
Number of mating cycles
200, without resistive load
Connection type
Socket - free end
Type of pre-assembled cable
Connecting cable
Cable type
H05Z1Z1-F 5G1.5
Protection type
IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
Mismating protection
Yes
Note on mismating protection
All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole
Locking lever
Can be retrofitted
Locking of plug-in connection
Locking lever
Note on locking system
All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket).
Note (material data)
Information on material specifications can be found here
Fire class per EN 50575
Dca
Contact material
Copper or copper alloy; surface-treated
Contact plating
Tin
Fire load
0.596MJ
Connector color
blue
Strain relief color
black
Printing color of strain relief
white
Sheathed cable color
black
Printing color of sheathed cable
white
Halogen-free
Yes
Silicon-free
Yes
Sheath material
Halogen-free
Rubber cable
No
Weight
1300.8g
Copper weight of the pipe
0.072kg/m
Processing temperature
-5 … +40 °C
Continuous operating temperature
-35 … +85 °C
Note on continuous operating temperature
Cable for temperatures ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C
