869-379

Name: 869-379
Brand: WAGO
SKU: 869-379

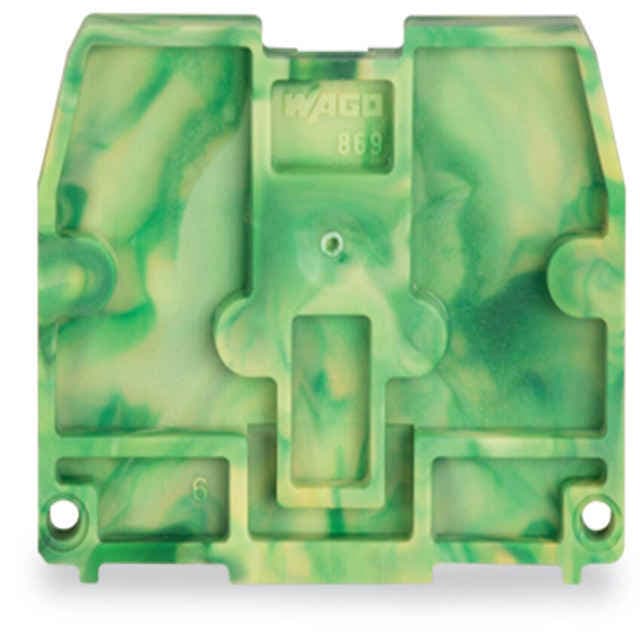

End plate for terminal blocks, green-yellow, 2.5 mm thick, snap-in mounting foot.

Product Model869-379

Product ID110070

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
FeatureDurable Construction
2
FeatureSnap-in Mounting Foot for Easy Installation
3
FeatureHigh-Quality Polyamide (PA66) Insulation Material
4
FeatureMeets UL94 V0 Flammability Standards
5
FeatureCompact Design with 2.5 mm Thickness
6

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Width

2.5 mm / 0.098 inches

Height

27.6 mm / 1.087 inches

Depth

33.4 mm / 1.315 inches

Note (material data)

Information on material specifications can be found here

Color

green-yellow

Material group

FeatureDurable Construction

FeatureSnap-in Mounting Foot for Easy Installation

FeatureHigh-Quality Polyamide (PA66) Insulation Material

FeatureMeets UL94 V0 Flammability Standards

FeatureCompact Design with 2.5 mm Thickness

Insulation material (main housing)

Flammability class per UL94

Fire load

0.047MJ

Weight

1.6g

Product Group

16 (Rail Mounted Terminal Blocks with CCC)

eCl@ss 10.0

27-14-11-33

eCl@ss 9.0

27-14-11-33

ETIM 9.0

EC000886

ETIM 8.0

EC000886

ECCN

NO US CLASSIFICATION

PU (SPU)

100 (25) pcs

Packaging type

box

Country of origin

GTIN

4017332548700

Customs tariff number

8538906000

RoHS Compliance Status

Compliant,No Exemption
