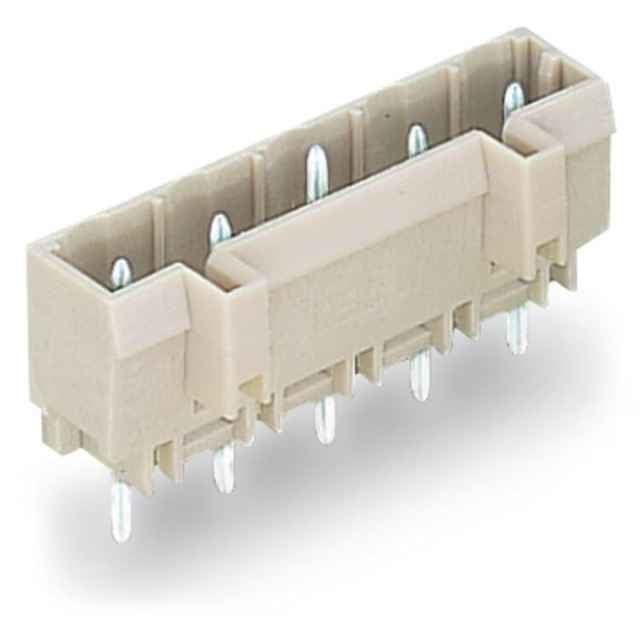

WAGO 721-235/001-040 THT male header for PCBs, featuring 5 poles, 7.5 mm pin spacing, and preceding GND contact.
Product Model721-235/001-040
Product ID110052
Stock on Request
Last updated: 8/29/2026
Key Features
1
Feature100% Protection Against Mismating
2
FeaturePreceding Ground Contact for Enhanced Safety
3
FeatureRated Current of 12 A and Rated Voltages up to 1000 V
4
FeatureTHT Solder Pins with 1 x 1 mm Dimensions
5
FeatureUL94 V0 Flammability Class and -60 to +100 °C Temperature Range
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Safety information
TheMCS MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
Variants:
Other pole numbers
Total number of potentials
5
Number of connection types
1
Number of levels
1
6
Feature100% Protection Against Mismating
7
FeaturePreceding Ground Contact for Enhanced Safety
8
FeatureRated Current of 12 A and Rated Voltages up to 1000 V
9
FeatureTHT Solder Pins with 1 x 1 mm Dimensions
10
FeatureUL94 V0 Flammability Class and -60 to +100 °C Temperature Range
PE function
Preceding PE contact
Pin spacing
7.5 mm / 0.295 inches
Width
38 mm / 1.496 inches
Height
17 mm / 0.669 inches
Height from the surface
12 mm / 0.472 inches
Depth
11.4 mm / 0.449 inches
Solder pin length
5mm
Solder pin dimensions
1 x 1 mm
Drilled hole diameter with tolerance
1.4(+0.1)mm
Variable coding
Yes
Anti-rotation protection
Yes
Contact type (pluggable connector)
Male header
Connector (connection type)
for PCB
Mismating protection
Yes
Plugging without loss of pin spacing
No
Mating direction to the PCB
90°
Locking of plug-in connection
none
PCB contact
THT
Solder pin arrangement
over the entire male connector (in-line)
Number of solder pins per potential
1
Note (material data)
Information on material specifications can be found here
