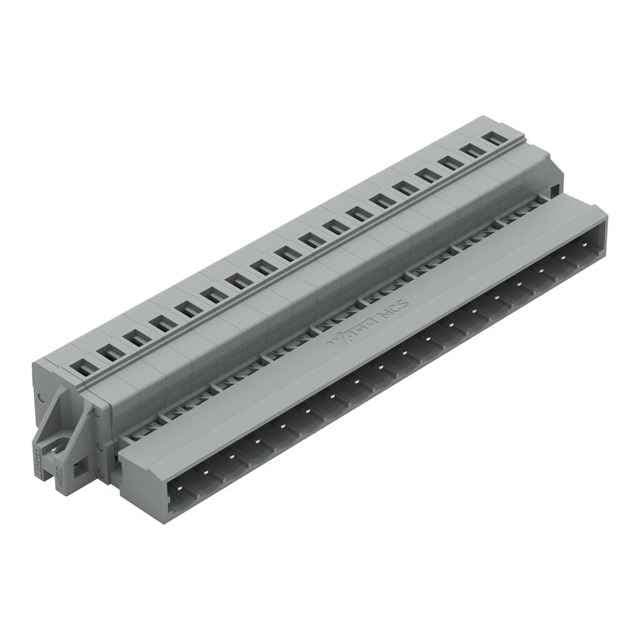

18-pole male connector for PCB interconnect, 5 mm pin spacing, mounting flange, gray, ROHS compliant.
Product Model231-618/019-000
Product ID110033
Stock on Request
Last updated: 8/29/2026
Key Features
1
Feature18 poles for multiple connections
2
Feature5 mm pin spacing for compatibility with various PCB designs
3
FeatureMounting flange for secure installation
4
FeatureROHS compliant for environmental safety
5
FeatureGray color for easy identification
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Safety information
TheMCS MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
Variants:
Other pole numbers
Clamping units
18
Total number of potentials
18
Number of connection types
1
Number of levels
1
Pin spacing
5 mm / 0.197 inches
Width
104.8 mm / 4.126 inches
Height
14.3 mm / 0.563 inches
Depth
27.5 mm / 1.083 inches
Variable coding
Yes
Mounting type
Feed-through mounting
Anti-rotation protection
Yes
Contact type (pluggable connector)
Male connector/plug
Connector (connection type)
for conductor
Mismating protection
No
Plugging without loss of pin spacing
No
Locking of plug-in connection
none
Note (material data)
Information on material specifications can be found here
