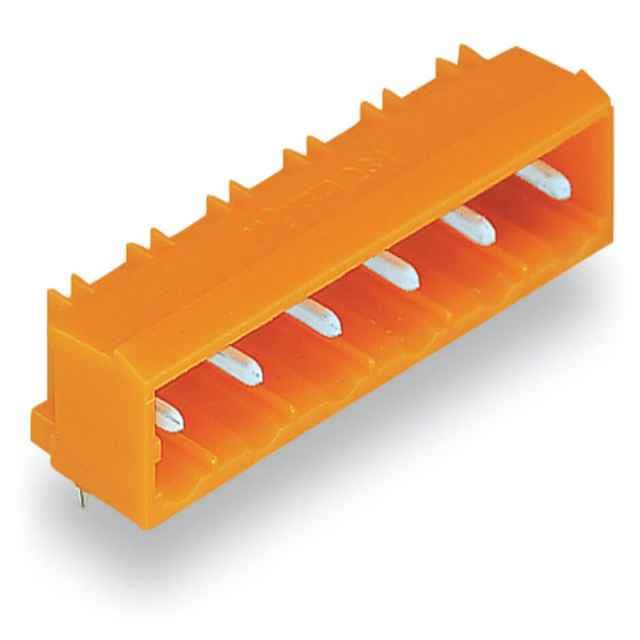

WAGO 231-965/001-000 PCB terminal block, ideal for reliable connections in various applications.
Product Model231-965/001-000
Product ID110015
Stock on Request
Last updated: 8/29/2026
Key Features
1
FeatureHigh-quality and reliable connections
2
FeaturePart of the renowned WAGO 231 series
3
FeatureDurable construction with polyamide (PA66) insulation
4
FeatureElectrolytic copper contacts with tin plating for longevity
5
FeatureSuitable for through-hole technology (THT) PCB applications
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Safety information
TheMCS MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
Variants:
Other pole numbers
Total number of potentials
5
Number of connection types
1
Number of levels
1
Pin spacing
7.62 mm / 0.3 inches
Width
38.68 mm / 1.523 inches
Height
12.2 mm / 0.48 inches
Height from the surface
8.4 mm / 0.331 inches
Depth
12 mm / 0.472 inches
Solder pin length
3.8mm
Solder pin dimensions
1.2 x 1.2 mm
Drilled hole diameter with tolerance
1.7(+0.1)mm
Variable coding
Yes
Anti-rotation protection
Yes
Contact type (pluggable connector)
Male connector/plug
Connector (connection type)
for PCB
Mismating protection
No
Plugging without loss of pin spacing
No
Mating direction to the PCB
0°
Locking of plug-in connection
none
PCB contact
THT
Solder pin arrangement
over the entire male connector (in-line)
Number of solder pins per potential
1
Note (material data)
Information on material specifications can be found here
