2000-405/000-006

Name: 2000-405/000-006
Brand: WAGO
SKU: 2000-405/000-006

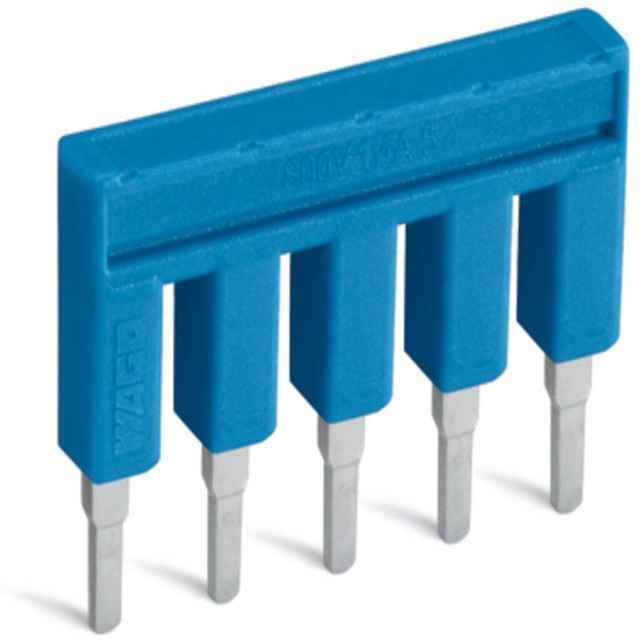

WAGO TOPJOB®S 5-way insulated jumper for reliable electrical connections in the 2000 series.

Product Model2000-405/000-006

Product ID110013

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
FeatureUncompromising Quality
2
FeatureEfficiency and Time Savings
3
FeatureVersatility
4
FeatureSustainability
5
FeatureEase of Use
6

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Width

16.4 mm / 0.646 inches

Height

4.1 mm / 0.161 inches

Depth

19 mm / 0.748 inches

Jumper assignment

1-2-3-4-5

Note (material data)

Information on material specifications can be found here

Color

blue

FeatureUncompromising Quality

FeatureEfficiency and Time Savings

FeatureVersatility

FeatureSustainability

FeatureEase of Use

Product Group

22 (TOPJOB S)

eCl@ss 10.0

27-14-11-40

eCl@ss 9.0

27-14-11-40

ETIM 9.0

EC000489

ETIM 8.0

EC000489

ECCN

NO US CLASSIFICATION

PU (SPU)

25 pcs

Packaging type

bag

Country of origin

GTIN

4055143696197

Customs tariff number

8536698000

RoHS Compliance Status

Compliant,No Exemption

Rated voltage (III / 3)

800V

Rated current

14A

Rated current (Ex e II)

12A

Test specification Railway applications Rolling stock Electronic equipment

DIN EN 50155 (VDE 0115-200):2022-06

Test procedure Railway applications Rolling stock equipment Shock and vibration tests

DIN EN 61373 (VDE 0115-0106):2011-04

Spectrum/Installation location

Service life test, Category 1, Class A/B

Function test with noise-like vibration

Test passed according to Section 8 of the standard

Frequency

f1= 5 Hz to f2= 150 Hz

Acceleration

5g (highest test level used for all axes)

Test duration per axis

5 h

Test directions

X, Y and Z axes

Monitoring for contact faults/interruptions

Passed

Voltage drop measurement before and after each axis

Passed

Simulated service life test through increased levels of noise-like vibration

Test passed according to Section 9 of the standard

Extended test scope: Monitoring for contact faults/interruptions

Passed

Extended test scope: Voltage drop measurement before and after each axis

Passed

Shock test

Test passed according to Section 10 of the standard

Shock form

Half sine

Shock duration

30 ms

Number of shocks per axis

3 pos. und 3 neg.

Vibration and shock stress for rolling stock equipment

Passed
