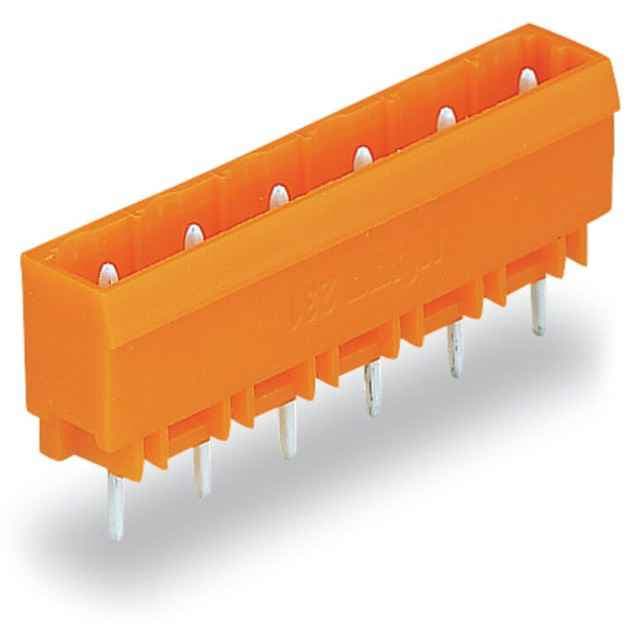

WAGO 231-765/001-000 is a THT male header featuring 1.2 x 1.2 mm solder pins, straight orientation, and 7.62 mm pin spacing. It is a 5-pole connector and is RoHS compliant.
Product Model231-765/001-000
Product ID109996
Stock on Request
Last updated: 8/29/2026
Key Features
1
FeatureHigh-quality THT male header from WAGO
2
Feature1.2 x 1.2 mm solder pins for reliable connections
3
FeatureStraight pin orientation for easy installation
4
Feature7.62 mm pin spacing for compatibility with various applications
5
FeatureRoHS compliant to meet environmental standards
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Safety information
TheMCS MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
Variants:
Other pole numbers
Total number of potentials
5
Number of connection types
1
Number of levels
1
Pin spacing
7.62 mm / 0.3 inches
Width
38.68 mm / 1.523 inches
Height
17 mm / 0.669 inches
Height from the surface
12 mm / 0.472 inches
Depth
8.4 mm / 0.331 inches
Solder pin length
5mm
Solder pin dimensions
1.2 x 1.2 mm
Drilled hole diameter with tolerance
1.7(+0.1)mm
Variable coding
Yes
Anti-rotation protection
Yes
Contact type (pluggable connector)
Male connector/plug
Connector (connection type)
for PCB
Mismating protection
No
Plugging without loss of pin spacing
No
Mating direction to the PCB
90°
Locking of plug-in connection
none
PCB contact
THT
Solder pin arrangement
over the entire male connector (in-line)
Number of solder pins per potential
1
Note (material data)
Information on material specifications can be found here
