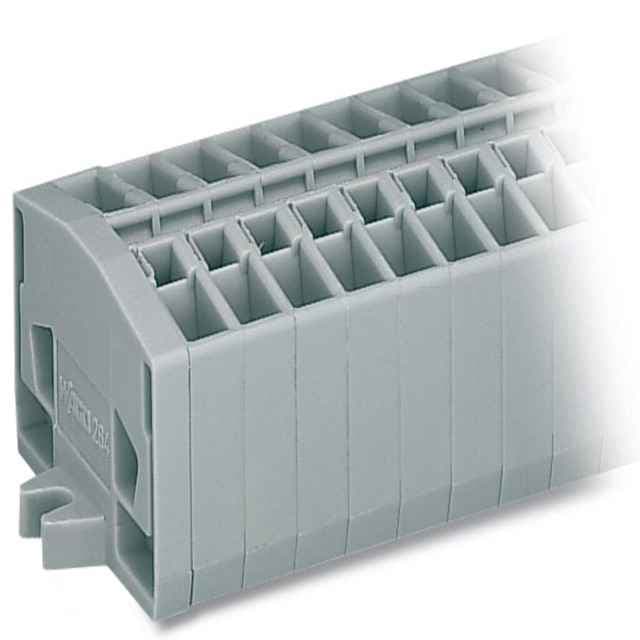

264-160

Name: 264-160
Brand: WAGO
SKU: 264-160

10-pole, 2.5 mm², fixing hole 3.5 mm Ø.

Product Model264-160

Product ID109936

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
FeatureWithout push-buttons
2
FeatureWith snap-in mounting feet
3
Feature10-pole
4
FeatureFor plate thickness 0.6 - 1.2 mm
5
FeatureFixing hole 3.5 mm Ø

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Clamping units

Total number of potentials

Number of levels

Width

67 mm / 2.638 inches

Height from the surface

22.1 mm / 0.87 inches

Depth

32 mm / 1.26 inches

Design

horizontal type

Mounting type

Snap-in foot

Marking level

Center marking

Note (material data)

Information on material specifications can be found here

Color

gray

Material group

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

Fire load

0.83MJ

Halogen-free

Yes

Weight

40.5g

Product Group

9 (Std Chassis Mt Blocks)

eCl@ss 10.0

27-14-11-06

eCl@ss 9.0

27-14-11-06

ETIM 9.0

EC001284

ETIM 8.0

EC001284

ECCN

NO US CLASSIFICATION

PU (SPU)

25 pcs

Packaging type

box

Country of origin

GTIN

4044918423694

Customs tariff number

8536904000

RoHS Compliance Status

Compliant,No Exemption

Rated voltage (III / 3)

800V

Rated impulse voltage (III / 3)

8kV

Rated current

24A

Legend (ratings)

(III / 3) ≙ Overvoltage category III / Pollution degree 3

Approvals per

CSA 22.2 No 158

Rated voltage UL (Use Group B)

600V

Rated current UL (Use Group B)

20A

Rated voltage UL (Use Group C)

600V

Rated current UL (Use Group C)

20A

Rated voltage CSA (Use Group C)

600V

Rated current CSA (Use Group C)

20A

Connection technology

CAGE CLAMP®

Actuation type

Operating tool

Connectable conductor materials

Copper

Solid conductor

0.08 … 2.5 mm2 / 28 12 AWG

Fine-stranded conductor

0.08 … 2.5 mm2 / 28 12 AWG

Note (conductor cross-section)

12 AWG: THHN, THWN

Strip length

8 9 mm / 0.31 0.35 inches

Number of poles

Wiring direction

Front-entry wiring
