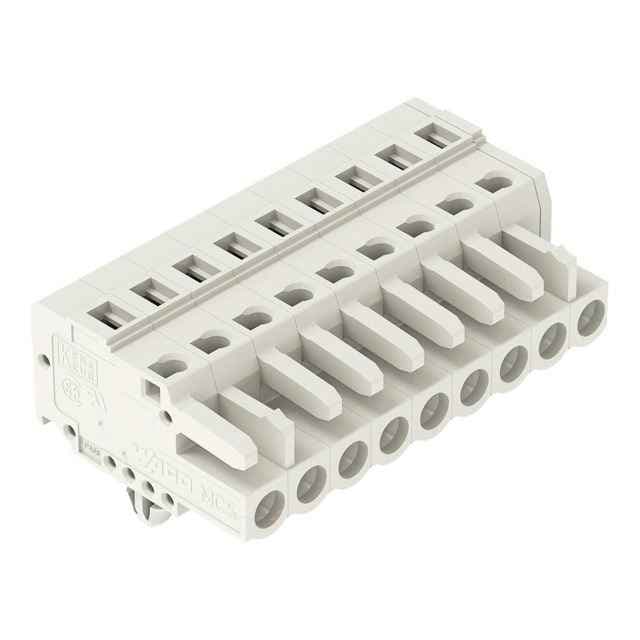

WAGO 721-109/008-000/037-000: 1-conductor female connector with CAGE CLAMP technology, 100% mismating protection, and snap-in mounting.
Product Model721-109/008-000
Product ID109913
Stock on Request
Last updated: 8/29/2026
Key Features
1
FeatureHigh-quality CAGE CLAMP connection technology for secure connections.
2
Feature100% protected against mismating to ensure safety and reliability.
3
FeatureSnap-in mounting feet for easy installation.
4
FeatureRated for up to 16 A and 630 V nominal voltage.
5
FeatureDurable polyamide (PA66) housing with UL94 V0 flammability class.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Safety information
TheMCS MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
Variants:
Other pole numbers
Clamping units
9
Total number of potentials
9
Number of connection types
1
Number of levels
1
Pin spacing
5 mm / 0.197 inches
Width
46.5 mm / 1.831 inches
Height
18.8 mm / 0.74 inches
Height from the surface
14.3 mm / 0.563 inches
Depth
26.45 mm / 1.041 inches
Drilled hole diameter for snap-in mounting foot with tolerance
3.5(+0.1)mm
Variable coding
Yes
Housing sheet thickness
0.6 1.2 mm / 0.024 0.047 inches
Mounting type
Panel mounting
Anti-rotation protection
Yes
Contact type (pluggable connector)
Female connector/socket
Connector (connection type)
for conductor
Mismating protection
Yes
Plugging without loss of pin spacing
No
Locking of plug-in connection
none
Note (material data)
Information on material specifications can be found here
