Name: 2022-2207
Brand: WAGO
SKU: 2022-2207

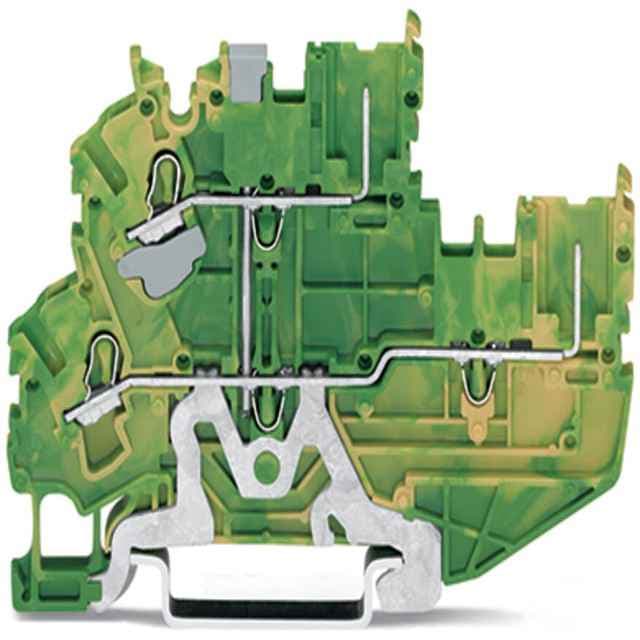

2-conductor/2-pin double-deck terminal block with Push-in CAGE CLAMP®, suitable for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm².

Product Model2022-2207

Product ID109911

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
FeatureCompact Design
2
FeatureEasy Installation
3
FeatureVersatile Compatibility
4
FeatureHigh Safety Standards
5
FeatureDurable Construction
6

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Safety information

A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM®-SYSTEM terminal strip.

Clamping units

Female plug slots

Total number of potentials

Number of levels

Number of jumper slots

FeatureCompact Design

FeatureEasy Installation

FeatureVersatile Compatibility

FeatureHigh Safety Standards

FeatureDurable Construction

Width

5.2 mm / 0.205 inches

Height

80.1 mm / 3.154 inches

Depth from upper-edge of DIN-rail

51.3 mm / 2.02 inches

Potential Marking

Design

horizontal type

Mounting type

DIN-35 rail

Marking level

Side marking

Note (material data)

Information on material specifications can be found here

Color

green-yellow

Material group

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

Fire load

0.253MJ

Weight

14.9g

Processing temperature

-35 … +85 °C

Continuous operating temperature

-60 … +105 °C

Product Group

18 (X-COM-System)

eCl@ss 10.0

27-14-11-41

eCl@ss 9.0

27-14-11-41

ETIM 9.0

EC000901

ETIM 8.0

EC000901

ECCN

NO US CLASSIFICATION

PU (SPU)

50 pcs

Packaging type

Box

Country of origin

GTIN

4055143265799

Customs tariff number

8536904000

RoHS Compliance Status

Compliant,No Exemption

Ratings per

IEC/EN 60947-7-2

Connection technology

Push-in CAGE CLAMP®

Actuation type

Operating tool

Connectable conductor materials

Copper

Nominal cross-section

2.5 mm2

Solid conductor

0.25 4 m㎡/ 22 12 AWG

Solid conductor; push-in termination

0.75 4 m㎡/ 18 12 AWG

Fine-stranded conductor

0.25 4 m㎡/ 22 12 AWG

Fine-stranded conductor; with insulated ferrule

0.25 2.5 m㎡/ 22 14 AWG

Fine-stranded conductor; with ferrule; push-in termination

1 2.5 m㎡/ 18 14 AWG

Note (conductor cross-section)

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

Strip length

10 12 mm / 0.39 0.47 inches

Wiring direction

Front-entry wiring

Test specification Railway applications Rolling stock Electronic equipment

DIN EN 50155 (VDE 0115-200):2022-06

Test procedure Railway applications Rolling stock equipment Shock and vibration tests

DIN EN 61373 (VDE 0115-0106):2011-04

Spectrum/Installation location

Service life test, Category 1, Class A/B

Function test with noise-like vibration

Test passed according to Section 8 of the standard

Frequency

f1= 5 Hz to f2= 150 Hz

Acceleration

5g (highest test level used for all axes)

Test duration per axis

5 h

Test directions

X, Y and Z axes

Monitoring for contact faults/interruptions

Passed

Voltage drop measurement before and after each axis

Passed

Simulated service life test through increased levels of noise-like vibration

Test passed according to Section 9 of the standard

Extended test scope: Monitoring for contact faults/interruptions

Passed

Extended test scope: Voltage drop measurement before and after each axis

Passed

Shock test

Test passed according to Section 10 of the standard

Shock form

Half sine

Shock duration

30 ms

Number of shocks per axis

3 pos. und 3 neg.

Vibration and shock stress for rolling stock equipment

Passed
