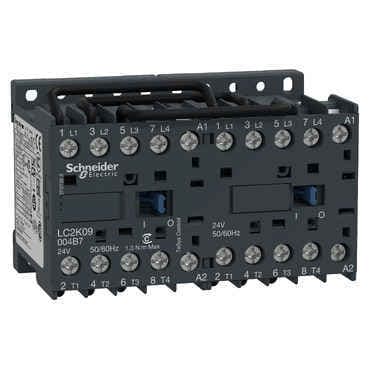

LC2K09004E7

4P

Power circuit 690 V AC 50/60 Hz

AC 50/60 Hz

8 kV

20 A (at 140 °F (60 °C)) for power circuit

110 A at 220...230 V conforming to IEC 60947110 A at 380...400 V conforming to IEC 60947110 A at 415 V conforming to IEC 60947110 A at 440 V conforming to IEC 6094780 A at 500 V conforming to IEC 6094770 A at 660...690 V conforming to IEC 60947

25 A gG at <= 440 V for power circuit25 A aM for power circuit

Power circuit 600 V UL 508Power circuit 690 V IEC 60947-4-1Power circuit 600 V CSA C22.2 No 14

Mechanical

EN/IEC 60947-4-1GB/T 14048.4UL 60947-4-1CSA C22.2 No 60947-4-1JIS C8201-4-1

screw clamp terminals 1 0.002...0.006 in² (1.5...4 mm²)solid screw clamp terminals 1 0.001...0.006 in² (0.75...4 mm²)flexible without cable end screw clamp terminals 1 0.0005...0.004 in² (0.34...2.5 mm²)flexible with cable end screw clamp terminals 2 0.002...0.006 in² (1.5...4 mm²)solid screw clamp terminals 2 0.001...0.006 in² (0.75...4 mm²)flexible without cable end screw clamp terminals 2 0.0005...0.002 in² (0.34...1.5 mm²)flexible with cable end

10...20 ms coil energisation and NO closing10...20 ms coil de-energisation and NO opening

5 Mcycles

Operational: 0.8...1.15 Uc (at <122 °F (50 °C))Drop-out: 0.2...0.75 Uc (at <122 °F (50 °C))

4.5 VA (at 68 °F (20 °C))

IP20 VDE 0106

-13...122 °F (-25...50 °C)

6561.68 ft (2000 m) without derating

Shocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27Shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27Shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27Shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27Shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27Shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27Vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6Vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6

3.5 in (90 mm)
