pun-h-12x2-trt-200

Name: pun-h-12x2-trt-200
Brand: FESTO
SKU: pun-h-12x2-trt-200

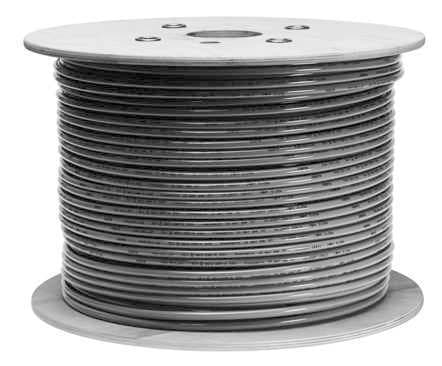

The Festo PUN-H-12X2-TRT-200 is a flexible, hydrolysis-resistant tubing designed for pneumatic applications. It features an outside diameter of 12 mm, an inside diameter of 8 mm, and a flow-relevant bending radius of 62 mm. Suitable for compressed air and water use, this tubing is perfect for various industrial needs.

Product Modelpun-h-12x2-trt-200

Material Number8048716

Product ID109563

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Durability and ResistanceThe PUN-H-12X2-TRT-200 is made from high-quality materials that ensure durability and resistance to hydrolysis, making it suitable for long-term use in demanding environments.
2
Versatile DesignAvailable in various colors, this tubing can be easily identified and integrated into different pneumatic systems, enhancing organizational efficiency.
3
Flexible and BendableWith a flow-relevant bending radius of 62 mm, the tubing can be bent without compromising its performance, allowing for flexible installation and routing.
4
Suitable for Multiple MediaDesigned for use with compressed air to ISO 8573-1:2010 and water (liquid, ice-free), this tubing is versatile and can be used in a variety of applications.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Outside diameter

12mm

Bending radius relevant for flow rate

62mm

Inside diameter

8mm

Min. bending radius

33mm

Application note

TPE-U Ether based

Tubing characteristics

Suitable for energy chains

Compliance and CertificationsMeets stringent quality standards and is certified by the German Technical Control Board (TÜV), ensuring compliance with industry regulations and safety protocols.

Operating pressure for entire temperature range

Temperature-dependent operating pressure

-13.775psi 145psi

Information on operating pressure

Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C

Certification

German Technical Control Board (TüV)

Certificate issuing authority

B 013277 0506 00

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)

Material fire test

UL94 HB

LABS (PWIS) conformity

VDMA24364-B2-L

Suitability for the production of Li-ion batteries

Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils

Cleanroom class

Statically installed element, no meaningful evaluation possible according to ISO 14644-1

For use in the food industry

See supplementary material information

Ambient temperature

-35°C 60°C

Product weight by length

0.0729kg/m

Pneumatic connection

For plug connection outside diameter 12 mm

Color

Translucent red

Shore hardness

D 52 +/-3

Note on materials

RoHS-compliant

Material of pneumatic tubing

TPE-U(PU)

Manufacturer ID

8048716
