pun-h-1/4-bl-1000-ha

Name: pun-h-1/4-bl-1000-ha
Brand: FESTO
SKU: pun-h-1/4-bl-1000-ha

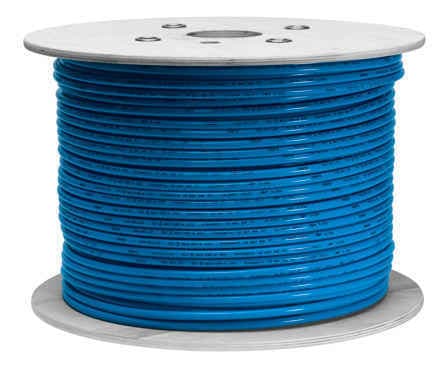

The Festo PUN-H-1/4-BL-1000-HA is a 1000-foot length of high-quality, hydrolysis-resistant polyurethane tubing. Suitable for pneumatic applications, it is available in various colors and is ideal for use with compressed air and water.

Product Modelpun-h-1/4-bl-1000-ha

Material Number568021

Product ID109516

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Hydrolysis-Resistant MaterialThe Festo PUN-H-1/4-BL-1000-HA is made from hydrolysis-resistant polyurethane, ensuring durability and longevity in various environments.
2
Versatile ApplicationsThis tubing is suitable for both pneumatic and water applications, making it versatile for a wide range of industrial uses.
3
High-Quality ConstructionConstructed with high-quality polyurethane, this tubing offers excellent resistance to microbes and hydrolysis, ensuring reliable performance.
4
Flexible and DurableThe flexible nature of the tubing allows for easy bending and installation, while its durable construction withstands the rigors of industrial use.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

External-Ã˜ inches

1/4

Bending radius relevant for flow rate

25.908mm

Min. bending radius

9.754mm

Application note

TPE-U Ether based

Tubing characteristics

Suitable for energy chains

Temperature-dependent operating pressure

-0.993bar 9.997bar

Configurable and CustomizableAvailable in various colors and lengths, the Festo PUN-H-1/4-BL-1000-HA can be easily configured to meet specific application requirements, ensuring a perfect fit for your needs.

Information on operating pressure

Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)

Material fire test

UL94 HB

LABS (PWIS) conformity

VDMA24364-B2-L

Suitability for the production of Li-ion batteries

Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils

Cleanroom class

Statically installed element, no meaningful evaluation possible according to ISO 14644-1

For use in the food industry

See supplementary material information

Ambient temperature

-35°C 63°C

Product weight by length

0.23kg/m

Pneumatic connection

For plug connection outside diameter 1/4

Color

Blue

Shore hardness

D 52 +/-3

Note on materials

RoHS-compliant

Material of pneumatic tubing

TPE-U(PU)

Manufacturer ID

568021
