Flexible, food-safe, and hydrolysis-resistant plastic tubing for pneumatic applications. Suitable for compressed air, water, and vacuum mediums.

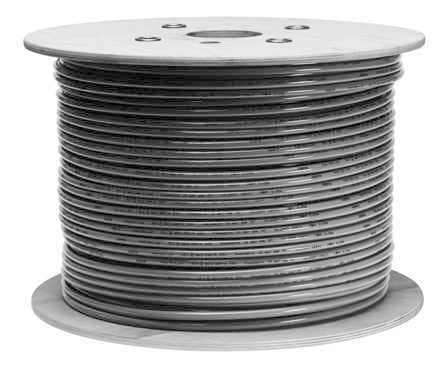

Product Modelpun-h-3/8-sw-500-ha
Material Number568020
Product ID109515
Stock on Request
Last updated: 8/29/2026
Key Features
1
Flexibility and DurabilityThe Festo PUN-H-3/8-SW-500-HA plastic tubing offers exceptional flexibility, making it suitable for various pneumatic applications. Its durable construction ensures long-lasting performance in demanding environments.
2
Food Safety and HygieneDesigned with food safety in mind, this tubing is FDA compliant and free of copper and PTFE, ensuring it meets the highest standards for clean rooms and food processing industries.
3
Hydrolysis ResistanceThe tubing is hydrolysis-resistant, making it an excellent choice for applications involving water or humid environments. This feature extends its lifespan and maintains its integrity under challenging conditions.
4
Easy InstallationThe PUN-H series is designed for easy installation with push-in pneumatic fittings. The simple one-click principle ensures quick and hassle-free connections, reducing downtime and increasing productivity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
External-Ø inches
3/8
Bending radius relevant for flow rate
52.121mm
Min. bending radius
24.689mm
Application note
TPE-U Ether based
Tubing characteristics
Suitable for energy chains
Temperature-dependent operating pressure
-0.993bar 9.997bar
5
Versatile ApplicationsCompatible with a wide variety of fittings, this tubing is versatile and can be used in various applications, including pneumatic systems, energy chains, and vacuum operations. Its flexibility and durability make it an ideal choice for high-cycle rate applications.
Information on operating pressure
Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Material fire test
UL94 HB
LABS (PWIS) conformity
VDMA24364-B2-L
Suitability for the production of Li-ion batteries
Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils
Cleanroom class
Statically installed element, no meaningful evaluation possible according to ISO 14644-1
For use in the food industry
See supplementary material information
Ambient temperature
-35°C 63°C
Product weight by length
0.48kg/m
Pneumatic connection
For plug connection outside diameter 3/8;
Color
Black
Shore hardness
D 52 +/-3
Note on materials
RoHS-compliant
Material of pneumatic tubing
TPE-U(PU)
Manufacturer ID
568020
