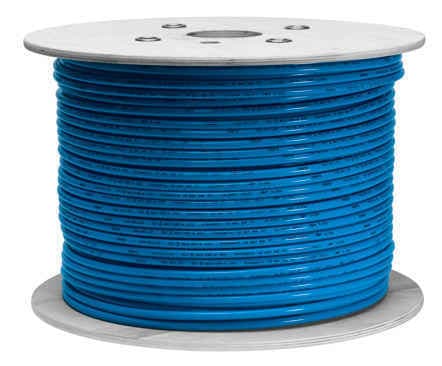

pun-h-3/8-bl-500-ha

Name: pun-h-3/8-bl-500-ha
Brand: FESTO
SKU: pun-h-3/8-bl-500-ha

The Festo PUN-H-3/8-BL-500-HA plastic tubing offers exceptional flexibility and durability, making it perfect for applications requiring reliable fluid transfer, especially in environments with high moisture content.

Product Modelpun-h-3/8-bl-500-ha

Material Number568016

Product ID109512

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
High FlexibilityThe PUN-H-3/8-BL-500-HA tubing provides maximum flexibility, ensuring it can be easily bent and maneuvered in tight spaces without compromising its integrity.
2
Resistance to KinkingDesigned to resist kinking, this tubing maintains its flow rate even under stress, ensuring consistent performance in various applications.
3
Hydrolysis ResistanceThe tubing is resistant to hydrolysis, making it suitable for use in environments with high moisture content, such as humid or wet conditions.
4
Ether-Based TPE-U MaterialConstructed from TPE-U, an ether-based material, this tubing offers excellent chemical resistance and durability, extending its lifespan in demanding applications.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

External-Ã˜ inches

3/8

Bending radius relevant for flow rate

52.121mm

Min. bending radius

24.689mm

Application note

TPE-U Ether based

Tubing characteristics

Suitable for energy chains

Temperature-dependent operating pressure

-0.993bar 9.997bar

Optimized Bending RadiusWith a bending radius of 52.121 mm and a minimum bending radius of 24.689 mm, the PUN-H-3/8-BL-500-HA tubing is optimized for smooth flow rates and easy installation.

Information on operating pressure

Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)

Material fire test

UL94 HB

LABS (PWIS) conformity

VDMA24364-B2-L

Suitability for the production of Li-ion batteries

Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils

Cleanroom class

Statically installed element, no meaningful evaluation possible according to ISO 14644-1

For use in the food industry

See supplementary material information

Ambient temperature

-35°C 63°C

Product weight by length

0.48kg/m

Pneumatic connection

For plug connection outside diameter 3/8;

Color

Blue

Shore hardness

D 52 +/-3

Note on materials

RoHS-compliant

Material of pneumatic tubing

TPE-U(PU)

Manufacturer ID

568016
