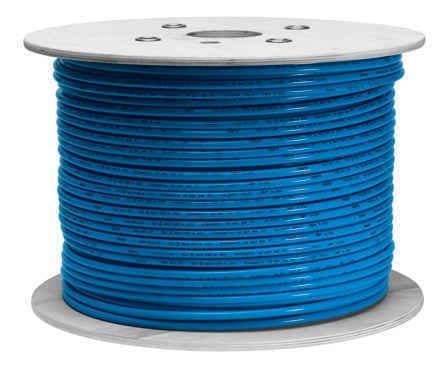

Festo PUN-H 1/4" blue plastic tubing, 500 ft, HA. Ideal for pneumatic applications with TPE-U Ether-based material. Suitable for various industrial uses.
Product Modelpun-h-1/4-bl-500-ha
Material Number568014
Product ID109511
Stock on Request
Last updated: 8/29/2026
Key Features
1
High-Quality MaterialThe PUN-H 1/4" blue plastic tubing is made from TPE-U Ether-based material, ensuring durability and resistance to various operating conditions.
2
Versatile ApplicationSuitable for a wide range of pneumatic applications, including energy chains, making it a versatile choice for various industrial uses.
3
Temperature-Dependent Operating PressureDesigned to operate within a temperature range of 0 - 60°C, with a maximum operating pressure of 0.3 MPa, ensuring reliable performance under different conditions.
4
Flow-Relevant Bending RadiusThe tubing features a flow-relevant bending radius of 25.908 mm, which is crucial for maintaining optimal flow rates in pneumatic systems.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
External-Ø inches
1/4
Bending radius relevant for flow rate
25.908mm
Min. bending radius
9.754mm
Application note
TPE-U Ether based
Tubing characteristics
Suitable for energy chains
Temperature-dependent operating pressure
-0.993bar 9.997bar
Compliance and SafetyMeets RoHS compliance and VDMA24364-B2-L standards, ensuring the product is safe for use in various industrial environments and compliant with regulatory requirements.
Information on operating pressure
Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Material fire test
UL94 HB
LABS (PWIS) conformity
VDMA24364-B2-L
Suitability for the production of Li-ion batteries
Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils
Cleanroom class
Statically installed element, no meaningful evaluation possible according to ISO 14644-1
For use in the food industry
See supplementary material information
Ambient temperature
-35°C 63°C
Product weight by length
0.23kg/m
Pneumatic connection
For plug connection outside diameter 1/4
Color
Blue
Shore hardness
D 52 +/-3
Note on materials
RoHS-compliant
Material of pneumatic tubing
TPE-U(PU)
Manufacturer ID
568014
