pun-h-5/8-br-150-cb

Name: pun-h-5/8-br-150-cb
Brand: FESTO
SKU: pun-h-5/8-br-150-cb

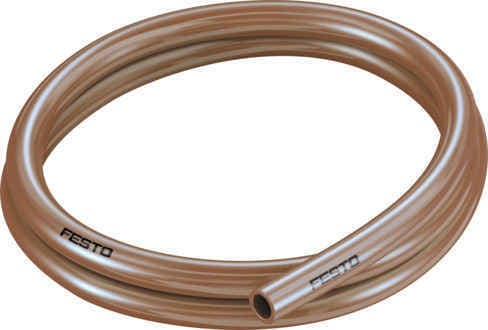

Short Product Description: Festo PUN-H-5/8-BR-150-CB is a durable, 5/8" outside diameter plastic tubing designed for pneumatic systems. It offers reliable performance with a maximum operating pressure of 0.3 MPa at 0-60°C, making it suitable for various industrial applications.

Product Modelpun-h-5/8-br-150-cb

Material Number568000

Product ID109505

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
High-Quality MaterialDescription: Made from durable, high-quality plastic, ensuring long-lasting performance and resistance to wear and tear.
2
Versatile ApplicationDescription: Suitable for a wide range of pneumatic applications, including industrial automation, manufacturing, and more.
3
Temperature-Dependent Operating PressureDescription: Designed to operate effectively within a temperature range of 0-60°C, with a maximum operating pressure of 0.3 MPa.
4
Easy InstallationDescription: Features a push-in connector for easy installation, reducing setup time and increasing efficiency.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

External-Ã˜ inches

5/8

Bending radius relevant for flow rate

87.782mm

Min. bending radius

38.1mm

Application note

TPE-U Ether based

Tubing characteristics

Suitable for energy chains

Temperature-dependent operating pressure

-0.993bar 9.997bar

Reliable PerformanceDescription: Offers reliable performance and smooth operation, ensuring consistent results in your pneumatic systems.

Information on operating pressure

Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)

Material fire test

UL94 HB

LABS (PWIS) conformity

VDMA24364-B2-L

Suitability for the production of Li-ion batteries

Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils

Cleanroom class

Statically installed element, no meaningful evaluation possible according to ISO 14644-1

For use in the food industry

See supplementary material information

Ambient temperature

-35°C 63°C

Product weight by length

1.38kg/m

Pneumatic connection

For plug connection outside diameter 5/8;

Color

Brown

Shore hardness

D 52 +/-3

Note on materials

RoHS-compliant

Material of pneumatic tubing

TPE-U(PU)

Manufacturer ID

568000
