Flexible and hydrolysis-resistant plastic tubing for compressed air, vacuum, and water applications. Suitable for energy chains and available in various colors.
Product Modelpun-h-3/8-br-150-cb
Material Number567998
Product ID109504
Stock on Request
Last updated: 8/29/2026
Key Features
1

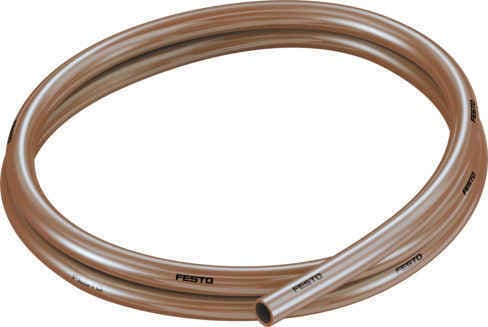

Flexibility and DurabilityThe Festo PUN-H 3/8" brown 150ft plastic tubing is highly flexible, making it easy to bend and maneuver in tight spaces. Its hydrolysis-resistant material ensures long-lasting performance in various environments.
2
Versatile ApplicationsThis tubing is suitable for use with compressed air, vacuum, and water, making it versatile for a wide range of industrial applications. It is also ideal for use in food processing due to its non-toxic properties.
3
Energy Chain CompatibilityThe PUN-H series is designed to work seamlessly with energy chains, providing a reliable and efficient solution for powering and controlling various industrial components.
4
Temperature-Dependent Operating PressureThe tubing operates within a temperature range of 0°C to 60°C, with a maximum operating pressure of 0.3 MPa. This ensures optimal performance in various temperature conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
External-Ø inches
3/8
Bending radius relevant for flow rate
52.121mm
Min. bending radius
24.689mm
Application note
TPE-U Ether based
Tubing characteristics
Suitable for energy chains
Temperature-dependent operating pressure
-0.993bar 9.997bar
5
Configurable and CustomizableThe Festo PUN-H 3/8" brown 150ft plastic tubing is part of a modular system, allowing for easy configuration and customization to meet specific application requirements. It can be ordered online via the Festo configurator for quick and efficient ordering.
Information on operating pressure
Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Material fire test
UL94 HB
LABS (PWIS) conformity
VDMA24364-B2-L
Suitability for the production of Li-ion batteries
Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils
Cleanroom class
Statically installed element, no meaningful evaluation possible according to ISO 14644-1
For use in the food industry
See supplementary material information
Ambient temperature
-35°C 63°C
Product weight by length
0.48kg/m
Pneumatic connection
For plug connection outside diameter 3/8;
Color
Brown
Shore hardness
D 52 +/-3
Note on materials
RoHS-compliant
Material of pneumatic tubing
TPE-U(PU)
Manufacturer ID
567998
