pun-h-5/16-br-150-cb

Name: pun-h-5/16-br-150-cb
Brand: FESTO
SKU: pun-h-5/16-br-150-cb

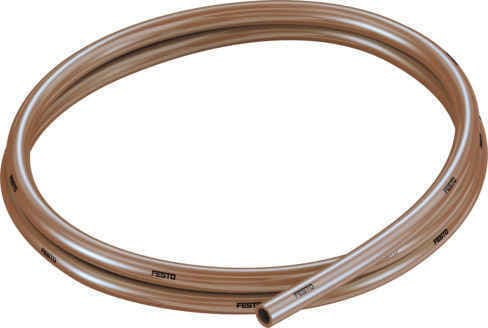

The Festo PUN-H-5/16-BR-150-CB plastic tubing is a high-quality pneumatic solution with a 5/16" outside diameter and 19.812" minimum bending radius. Suitable for energy chains and ideal for controlled and standard pneumatics.

Product Modelpun-h-5/16-br-150-cb

Material Number567997

Product ID109503

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
High-Quality MaterialMade from durable TPE-U material, ensuring long-lasting performance and resistance to various operating conditions.
2
Flow-Relevant Bending RadiusDesigned with a flow-relevant bending radius of 36.881" to minimize pressure drop and optimize system efficiency.
3
Suitable for Energy ChainsIdeal for use with energy chains, making it a versatile solution for complex automation systems.
4
Temperature-Dependent Operating PressureCompatible with temperature-dependent operating pressures, ensuring reliable performance across a wide temperature range.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

External-Ã˜ inches

5/16

Bending radius relevant for flow rate

36.881mm

Min. bending radius

19.812mm

Application note

TPE-U Ether based

Tubing characteristics

Suitable for energy chains

Temperature-dependent operating pressure

-0.993bar 9.997bar

Compliant with Industry StandardsMeets ISO 8573-1:2010 standards for compressed air and is suitable for use with water (liquid, ice-free), making it a reliable choice for various applications.

Information on operating pressure

Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)

Material fire test

UL94 HB

LABS (PWIS) conformity

VDMA24364-B2-L

Suitability for the production of Li-ion batteries

Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils

Cleanroom class

Statically installed element, no meaningful evaluation possible according to ISO 14644-1

For use in the food industry

See supplementary material information

Ambient temperature

-35°C 63°C

Product weight by length

0.31kg/m

Pneumatic connection

For plug connection outside diameter 5/16;

Color

Brown

Shore hardness

D 52 +/-3

Note on materials

RoHS-compliant

Material of pneumatic tubing

TPE-U(PU)

Manufacturer ID

567997
