pun-h-1/2-gn-150-cb

Name: pun-h-1/2-gn-150-cb
Brand: FESTO
SKU: pun-h-1/2-gn-150-cb

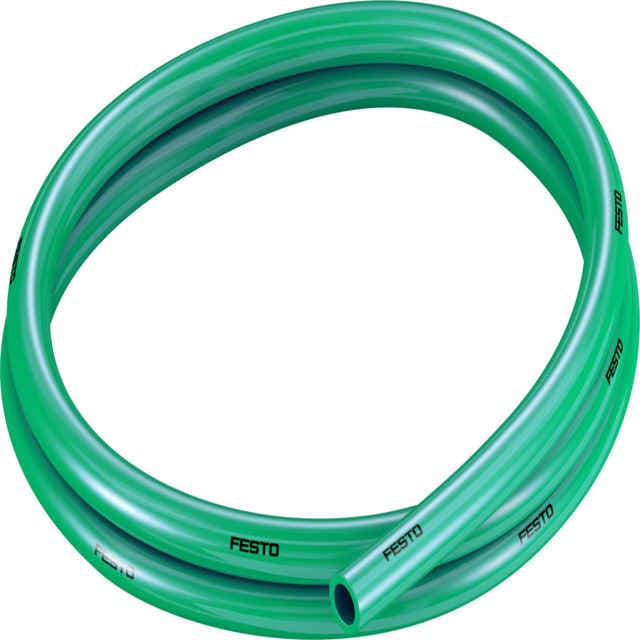

Festo's PUN-H 1/2" green plastic tubing is designed for push-in connectors, offering a reliable and durable solution for various applications. Suitable for use with compressed air and water, this tubing ensures optimal performance and is available in 150 ft lengths.

Product Modelpun-h-1/2-gn-150-cb

Material Number567983

Product ID109499

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
Reliable PerformanceFesto's PUN-H 1/2" green plastic tubing is engineered to provide consistent performance, making it an ideal choice for demanding applications.
2
Versatile UseThis tubing is suitable for use with both compressed air and water, offering flexibility in various industrial settings.
3
Durable ConstructionThe high-quality plastic material ensures the tubing withstands the rigors of industrial use, providing a long-lasting solution.
4
Easy InstallationThe push-in connector design simplifies installation, reducing setup time and increasing efficiency in your operations.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

External-Ã˜ inches

1/2

Bending radius relevant for flow rate

62.179mm

Min. bending radius

22.86mm

Application note

TPE-U Ether based

Tubing characteristics

Suitable for energy chains

Temperature-dependent operating pressure

-0.993bar 9.997bar

Temperature-Dependent Operating PressureThe tubing is designed to operate within a temperature range of 0 - 60°C, ensuring optimal performance in a variety of environments.

Information on operating pressure

Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)

Material fire test

UL94 HB

LABS (PWIS) conformity

VDMA24364-B2-L

Suitability for the production of Li-ion batteries

Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils

Cleanroom class

Statically installed element, no meaningful evaluation possible according to ISO 14644-1

For use in the food industry

See supplementary material information

Ambient temperature

-35°C 63°C

Product weight by length

0.88kg/m

Pneumatic connection

For plug connection outside diameter 1/2;

Color

Green

Shore hardness

D 52 +/-3

Note on materials

RoHS-compliant

Material of pneumatic tubing

TPE-U(PU)

Manufacturer ID

567983
