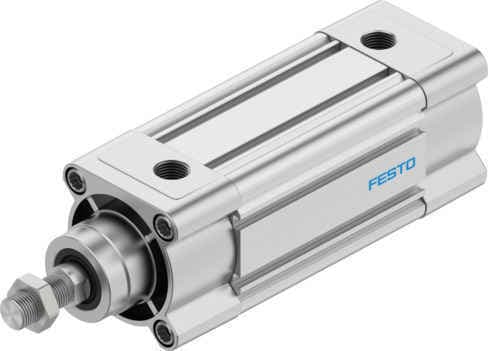

High-performance ISO cylinder with 63mm piston diameter, 80mm stroke, and self-adjusting pneumatic end-position cushioning for precise and reliable operation.
Product Modeldsbc-63-80-d3-ppsa-n3
Material Number3657818
Product ID109345
Stock on Request
Last updated: 8/29/2026
Key Features
1
Precision EngineeringThe Festo DSBC-63-80-D3-PPSA-N3 is engineered to provide precise movements, ensuring that your applications meet the highest standards of accuracy and reliability.
2
Self-Adjusting CushioningEquipped with self-adjusting pneumatic end-position cushioning, this cylinder maintains optimal performance even under varying operating conditions, reducing wear and tear.
3
Robust ConstructionBuilt with high-quality materials, including a wrought aluminum alloy piston and high-alloy steel piston rod, this cylinder is designed to withstand the demands of industrial environments.
4
Versatile Mounting OptionsThe DSBC-63-80-D3-PPSA-N3 offers flexible mounting options via female thread or accessories, allowing for easy integration into various systems and applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Stroke
80mm
Piston diameter
63 mm
Piston rod thread
M16x1.5
Cushioning
Self-adjusting pneumatic end-position cushioning
Mounting position
Any
Conforms to standard
ISO 15552
5
Compliance with Industry StandardsConforming to ISO 15552 standards, this cylinder ensures compatibility with a wide range of industrial systems, making it an ideal choice for various manufacturing and production processes.
Piston rod end
External thread
Structural design
Piston Piston rod Profile barrel
Position sensing
For proximity sensor
Symbol
00992970
Variants
Piston rod at one end
Operating pressure
0.4bar 12bar
Mode of operation
Double-acting
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Ambient temperature
-20°C 80°C
Impact energy in the end positions
1.3J
Cushioning length
22mm
Theoretical force at 6 bar, retracting
1682N
Theoretical force at 6 bar, advancing
1870N
Moving mass at 0 mm stroke
430g
Additional moving mass per 10 mm stroke
25g
Basic weight with 0 mm stroke
1774g
Additional weight per 10 mm stroke
92g
Type of mounting
Optionally: With internal thread With accessories
Pneumatic connection
G3/8
Note on materials
RoHS-compliant
Cover material
Die-cast aluminum, coated
Piston seal material
TPE-U(PU)
Material of piston
Wrought aluminum alloy
Piston rod material
High-alloy steel
Piston rod wiper material
TPE-U(PU)
Buffer seal material
TPE-U(PU)
Cushion piston material
POM
Material of cylinder barrel
Wrought aluminum alloy, smooth-anodized
Nut material
Steel, galvanized
Rod wiper material
TPE-E
Material of bearing
Metal polymer compound
Flange screws material
Steel, galvanized
Manufacturer ID
3657818
