22C-D072A103

Name: 22C-D072A103
Brand: ROCKWELL
SKU: 22C-D072A103

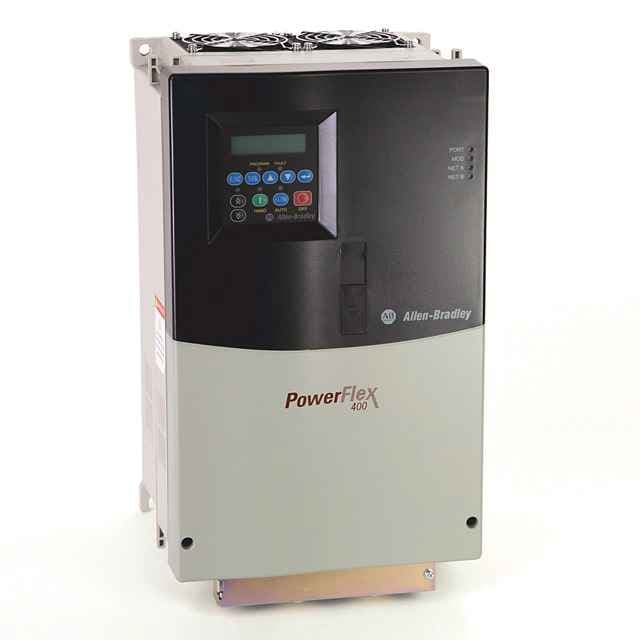

The Allen-Bradley 22C-D072A103 is a 50 HP adjustable frequency AC drive from the PowerFlex 400 series, ideal for high-power motor applications. It operates on 3-phase power, features RS485 connectivity, and includes an integral keypad and LED display for easy control and monitoring.

Product Model22C-D072A103

Product ID109094

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. High Power HandlingThe Allen-Bradley 22C-D072A103 is rated for 50 HP, making it suitable for high-power motor applications in industrial settings.
2
2. Adjustable FrequencyThis drive offers adjustable frequency control, allowing for precise regulation of motor speed and torque using both V/Hz and Sinusoidal PWM control methods.
3
3. Efficient OperationDesigned to operate efficiently with an output voltage range of 0 to 480 V AC and an input voltage range of 380 to 480 V AC, ensuring optimal performance in various industrial environments.
4
4. Advanced Control FeaturesEquipped with an integral keypad and LED display, the drive provides easy programming, monitoring, and adjustment of its settings and functions.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Brake IGBT

Not Included

Frequency Rating

50-60

Input Voltage Rating

480V AC

Output Current Rating

72 A

User Interface

Integral Keypad; LED Display

Repairable

REPAIRABLE

5. Reliable ConnectivityFeaturing RS485 connectivity, the drive offers reliable communication options for seamless integration with other industrial control systems.

6. Durable ConstructionBuilt with a robust design and suitable for operation in ambient temperatures ranging from -10 to 45 degrees Celsius (14 to 113 degrees Fahrenheit), ensuring reliable performance under various conditions.

7. Comprehensive WarrantyAll products, including new, refurbished, and repairs, are covered by the Industrial Automation Company's 2-year warranty, providing peace of mind for users.

8. Customizable Inputs/OutputsThe drive includes seven digital control inputs, with four fully customizable and three semi-programmable, allowing for a wide range of functionality based on user requirements.

9. Easy InstallationDesigned for panel mounting with an IP30 enclosure, the drive is easy to install and integrate into existing industrial control systems.

10. Wide Compatibility- Compatible with 3-phase power systems, making it suitable for a variety of industrial applications including mechanical fan and pump systems.

Preferred Availability

Quick Turnaround

false

Dimension Height

44.45

Lead Time

Dimension Width

53.34

Dimension Length

75.565

Stock Status

STOCKED

Weight

46.72

Weight Unit

Dimension Unit
