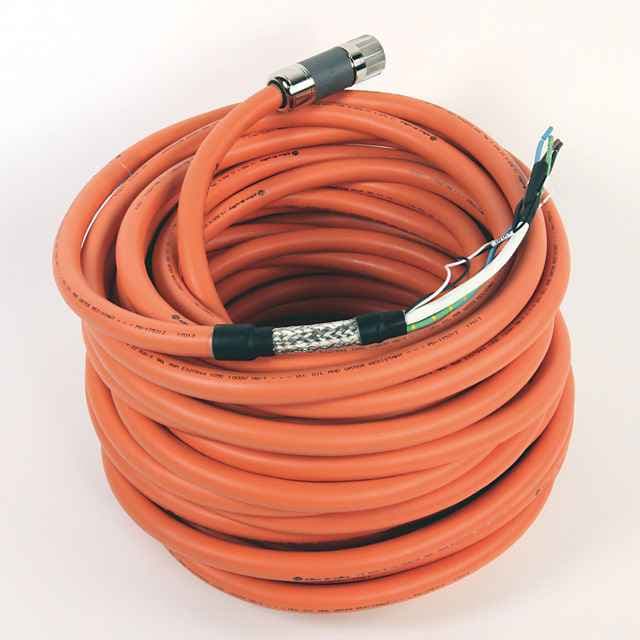

High-quality single motor power cable with brake wires, optimized for Kinetix 5500 drives, featuring 14 AWG wire and a 24-meter length.
Product Model2090-CSBM1DF-14AA24
Product ID109067
Stock on Request
Last updated: 8/29/2026
Key Features
1
1. Optimized for Kinetix 5500 DrivesDesigned specifically for use with Allen Bradley's Kinetix 5500 drives, ensuring seamless integration and performance.
2
2. Continuous-Flexible DesignBuilt to withstand continuous flexing, making it suitable for applications where cables are frequently bent or twisted.
3
3. Low CapacitanceFeatures a low capacitance design to maximize system power density, reducing electrical interference and improving overall system efficiency.
4
4. Robust Communication Data PairsEquipped with encoder communication data pairs that offer noise rejection, ensuring reliable digital communication in demanding environments.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Accessory Component
Single DSL
Cable Style
Standard, Non-flex
Drive-end Connector Type
Flying Lead at 5500 Drive End
Outer diameter approx.
17
Core colour
White
Cable length
24 m
5. TPE Jacket with Mechanical and Chemical PropertiesThe cable features a TPE jacket with excellent mechanical and chemical properties, providing durability and resistance to various environmental conditions.
Drive-end connector type
Drive-end, without connector kit, flying-lead (optimized for Kinetix 5500)
Number of cores
8
With protective conductor
Yes
Core identification
Colour
Colour outer sheath
Orange
Conductor material
Copper
Conductor surface
Tinned
Color cable code
RAL2003
Core color
White/blue
Motor-end connector type
Single speedTec DIN connector
AWG size
14
Nominal voltage U
1000
Cable type
Single motor power with brake wires
Cable description
Power with brake wires: 1000V hybrid cable with four power, two ftdback (digital communication), and two brake conductors
Nominal cross section conductor
2.08
Nominal cross section conductor (AWG)
4.1
Cable style
Standard, non-flexible
Weight, approx
Continuous-flex, power with brake wire: 0.289 kg/m
Twisted cores
No
Accessory component
Cable
Static bend radius
Standard (non-flex) and continuous flex: 7 times the cable diam
Features
Low capacitance design to maximize system power density, speedtec connection system, encoder communication data pair with noise rejection, TPE jacket with mechanical and chemical properties, cable features overall tinned copper braid with aluminum/pol
Max. conductor temperature
105
Repairable
NOT_REPAIRABLE
Preferred Availability
false
Quick Turnaround
false
Dimension Height
24.79
Lead Time
39
Dimension Width
34.112
Dimension Length
32.207
Stock Status
NON_STOCKED
Weight
8.559
Weight Unit
KG
Dimension Unit
CM
