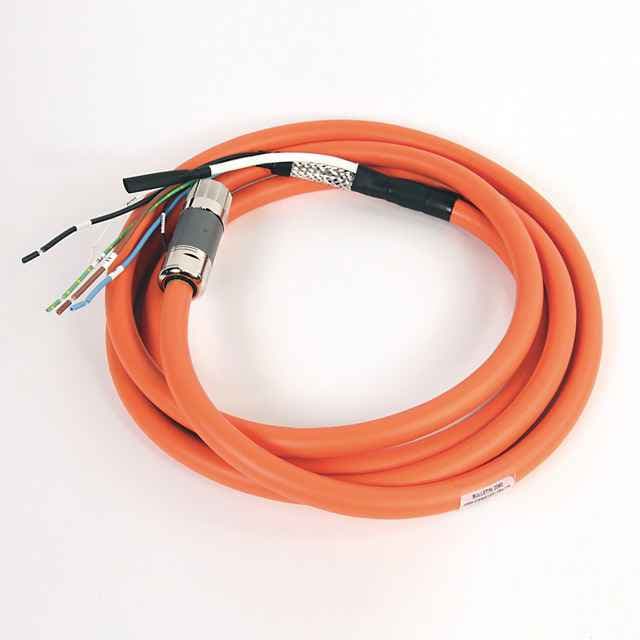

2090-CSBM1DF-18AF07

Name: 2090-CSBM1DF-18AF07
Brand: ROCKWELL
SKU: 2090-CSBM1DF-18AF07

The Allen Bradley 2090-CSBM1DF-18AF07 is a high-quality motor cable designed for industrial use. It features 18 AWG wire, continuous flex, and a 7-meter cable length, ensuring reliable power and feedback transmission. Ideal for Kinetix 5500 drives, this cable provides a durable and efficient solution for your motor needs.

Product Model2090-CSBM1DF-18AF07

Product ID108901

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. Reliable Power TransmissionThe Allen Bradley 2090-CSBM1DF-18AF07 is engineered to provide consistent and reliable power transmission, ensuring your industrial equipment operates smoothly and efficiently.
2
2. Continuous FlexibilityWith its continuous flex design, this cable can withstand the rigors of industrial environments, making it perfect for applications where flexibility is crucial.
3
3. Durable ConstructionFeaturing 18 AWG wire, this cable is built to last, providing a robust and durable solution for your motor needs. Its construction ensures minimal wear and tear over time.
4
4. Efficient Feedback TransmissionDesigned for Kinetix 5500 drives, the 2090-CSBM1DF-18AF07 ensures efficient feedback transmission, allowing for precise control and monitoring of your industrial equipment.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Accessory Component

Single DSL

Drive-end Connector Type

Drive-End, Flying Lead, K5500

Motor-end Connector Type

Single SpeedTec DIN Connector

Outer diameter approx.

15 mm

Core colour

White

Cable length

7 m

5. Versatile ApplicationThis motor cable is versatile and can be used in a variety of industrial applications, including power, feedback, and brake systems. Its 7-meter cable length provides ample flexibility for different setup configurations.

Drive-end connector type

Drive-end, without connector kit, flying-lead (optimized for Kinetix 5500)

With protective conductor

Yes

Core identification

Colour

Colour outer sheath

Orange

Conductor material

Copper

Conductor surface

Tinned

Color cable code

RAL2003

Core color

White/blue

Motor-end connector type

Single speedTec DIN connector

AWG size

18 AWG

Nominal voltage U

1000

Cable type

Single motor power with brake wires

Cable description

Power with brake wires: 1000V hybrid cable with four power, two ftdback (digital communication), and two brake conductors

Nominal cross section conductor

0.82

Nominal cross section conductor (AWG)

1.62

Cable style

Continuous-flexible

Weight, approx

Continuous-flex, power with brake wire: 0.228 kg/m

Twisted cores

Accessory component

Cable

Continuous bend radius

Continuous flex: 10 times the cable diam

Features

Low capacitance design to maximize system power density, speedtec connection system, encoder communication data pair with noise rejection, TPE jacket with mechanical and chemical properties, cable features overall tinned copper braid with aluminum/pol

Max. conductor temperature

105

Repairable

NOT_REPAIRABLE
