Name: 2090-CSBM1DF-14AA22
Brand: ROCKWELL
SKU: 2090-CSBM1DF-14AA22

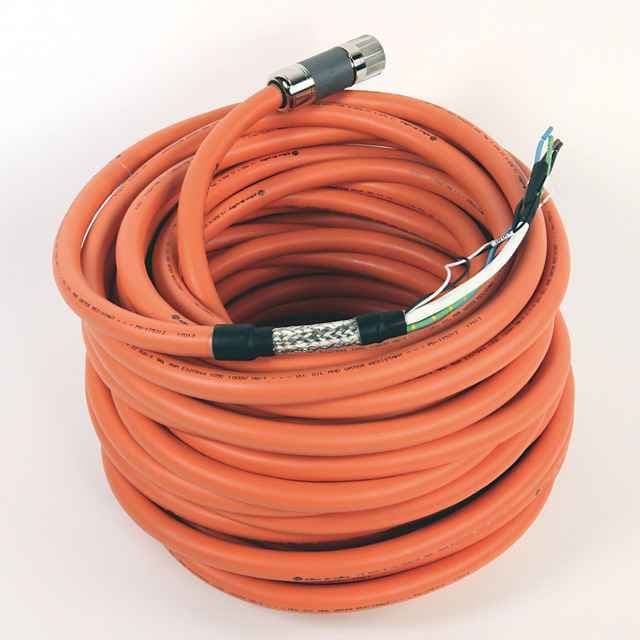

Product Description: The Allen-Bradley 2090-CSBM1DF-14AA22 is a 14 AWG single motor power cable with brake wires, optimized for Kinetix 5500 drives. It includes four power, two feedback, and two brake conductors, ensuring reliable transmission of power and feedback signals. The cable features a standard non-flexible design and a flying lead at the drive end.

Product Model2090-CSBM1DF-14AA22

Product ID108820

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. Reliable Power TransmissionThe Allen-Bradley 2090-CSBM1DF-14AA22 ensures reliable power transmission with its high-quality 14 AWG wire, making it ideal for demanding industrial applications.
2
2. Integrated Brake WiresThis cable includes two brake conductors, allowing for seamless integration with brake systems, enhancing overall system performance and safety.
3
3. SpeedTec Connection SystemThe cable is designed with the SpeedTec connection system, which provides efficient and reliable connections, minimizing downtime and ensuring smooth operation.
4
4. High FlexibilityAlthough it is a standard non-flexible cable, it is designed to withstand the rigors of industrial environments, providing a durable solution for various applications.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Accessory Component

Single DSL

Cable Style

Standard, Non-flex

Drive-end Connector Type

Flying Lead at 5500 Drive End

Motor-end Connector Type

Single SpeedTec DIN Connector

Outer diameter approx.

Core colour

White

5. Comprehensive DesignThe cable features a tinned copper braid with aluminum/polyester tape, offering excellent EMC/EMI performance and ensuring that both power and signal conductors operate effectively in a single cable.

Cable length

22 m

Drive-end connector type

Drive-end, without connector kit, flying-lead (optimized for Kinetix 5500)

Number of cores

With protective conductor

Yes

Core identification

Colour

Colour outer sheath

Orange

Conductor material

Copper

Conductor surface

Tinned

Color cable code

RAL2003

Core color

White/blue

Motor-end connector type

Single speedTec DIN connector

AWG size

Nominal voltage U

1000

Cable type

Single motor power with brake wires

Cable description

Power with brake wires: 1000V hybrid cable with four power, two ftdback (digital communication), and two brake conductors

Nominal cross section conductor

2.08

Nominal cross section conductor (AWG)

4.1

Cable style

Standard, non-flexible

Weight, approx

Continuous-flex, power with brake wire: 0.289 kg/m

Twisted cores

Accessory component

Cable

Static bend radius

Standard (non-flex) and continuous flex: 7 times the cable diam

Features

Low capacitance design to maximize system power density, speedtec connection system, encoder communication data pair with noise rejection, TPE jacket with mechanical and chemical properties, cable features overall tinned copper braid with aluminum/pol

Max. conductor temperature

105

Repairable

NOT_REPAIRABLE

Preferred Availability

false

Quick Turnaround

false

Dimension Height

30.505

Lead Time

Dimension Width

17.805

Dimension Length

31.09

Stock Status

NON_STOCKED

Weight
