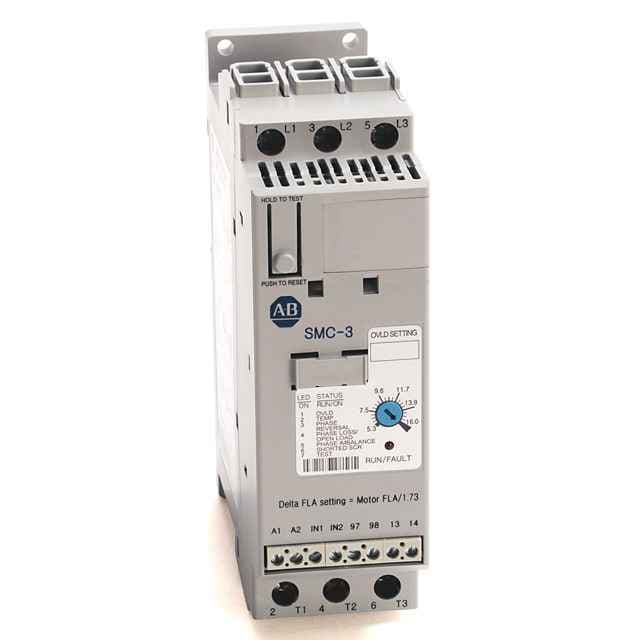

150-C361NBD

Name: 150-C361NBD
Brand: ROCKWELL
SKU: 150-C361NBD

The Allen-Bradley 150-C361NBD is a versatile smart motor controller designed for 3-phase operation. It supports 100-240V AC and offers customizable settings for torque and kick start, making it ideal for various industrial applications.

Product Model150-C361NBD

Product ID108741

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. Versatile OperationThe Allen-Bradley 150-C361NBD supports 3-phase operation, making it suitable for a wide range of industrial applications.
2
2. Customizable SettingsThis smart motor controller allows for customizable settings for torque and kick start, ensuring you can tailor the control to your specific needs.
3
3. Reliable PerformanceDesigned for reliable and efficient motor control, the 150-C361NBD is built to handle demanding industrial environments.
4
4. Wide Voltage CompatibilityCompatible with 100-240V AC, this controller can be easily integrated into various electrical systems.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Product Family

SMC-3

With display

Voltage type for actuating

AC/DC

Rated operating voltage Ue

200

Rated control supply voltage at AC 50 Hz

100

Rated control supply voltage at AC 60 Hz

100

5. Industrial-Grade BuildConstructed with high-quality materials, the 150-C361NBD is built to withstand the rigors of industrial use, ensuring long-lasting performance.

DV/DT protection

1000V/Î¼s for power circuit

Repetitive peak voltage

1400V per UL/CSA/NEMA for power circuit

Operating frequency

50/60 Hz per UL/CSA/NEMA for power circuit

Overvoltage category

III per IEC for side mount auxiliary contacts

Rated impulse voltage

6 kV for power circuit

Dielectric withstand

2500V AC per IEC for power circuit

Insulation voltage

Rated 600V AC per UL/CSA/NEMA for power circuit

Rated operational voltage

250V AC/30V DC per UL/CSA/NEMA for Side mount auxiliary contacts

Rated control power during start with fan

200mA @ 120V AC/120mA @ 240V AC, 600mA @ 24V AC/DC

Input OFF-state current

<10 mA, <12 mA @ input OFF-state voltage (IN1, IN2) for control circuit

Short-circuit protection device list

Non-time delay Thermal magnetic circuit breaker High capacity time delay class CC/J/L

Number of contacts

TB-97, -98 (OVLD/Fault): 1 for auxiliary contacts

High capacity available fault current, max

69kA @ 600V, maximum current 600 A time delay Class J or Class L fuse for line connected motors

Type of current

TB-97, -98 (OVLD/Fault): AC/DC for auxiliary contacts

Conventional thermal current (Ith)

TB-97, -98 (OVLD/Fault): 1 A for auxiliary contacts

Type of control circuit

TB-97, -98 (OVLD/Fault): Electromagnetic relay for auxiliary contacts

Type of contacts

TB-97, -98 (OVLD/Fault): Normally Open (N.O.) for auxiliary contacts

Utilization category

TB-23, -24 (normal/up-to-speed), TB-33, -34 (normal/up-to-speed): C300/R150 per UL/CSA/NEMA for Side mount auxiliary contacts

Rated operational current, max

TB-97, -98 (OVLD/Fault): 0.6A @ 120V AC and 0.3A @ 240V AC for auxiliary contacts

Standard controller feature

Soft stop

Integrated motor overload protection

Yes

Short circuit protection device performance (SCPD) type

Type 1

Selectable overload trip class

Trip Class 10, 15, or 20

Selectable start times

2, 5, 10, 15, 20, 25, or 30 s

Input OFF-state voltage (IN1, IN2), max

40V AC @ 17V DC/12V AC for control circuit

Selectable current limit

150%, 250%, 350%, and 450% of full load current

Input ON-state voltage, during start (IN1, IN2)

85V AC @ 19.2V DC/19.2V AC minimum for control circuit

Input ON-state current (IN1, IN2)

9.8mA @ 120V AC/19.6mA @ 240V AC for control circuit, 7.3mA @ 24V AC/DC for control circuit

Degree of protection (IP)

IP2X

Weight

44.444

Shock

Opsal: 15 G

Width

290 mm (11.42 in)

Height

600 mm (23.62 in)

Cable size

0.2...2.5 mm2 (24...14 AWG) for control terminals

Vibration

Opsal: 1.0 G peak, 0.15 mm (0.006 in) displacement

Make

TB-97, -98 (OVLD/Fault): 432VA for auxiliary contacts

Break

TB-97, -98 (OVLD/Fault): 72VA for auxiliary contacts

Tightening torque

0.45...0.9 Nm (4.0...8.0 in-lb) for control terminals

Internal bypass

Yes

Function

Single direction

Selectable kick start - 450% FLA

0, 0.5, 1.0, or 1.5 s

Selectable initial torque

15%, 25%, 35%, and 65% of locked rotor torque

Selectable soft stop

Off, 100%, 200%, or 300% of the start time setting when wired

Mounting hole size

11.5 mm

Number of poles

Equipment is designed for 3-phase only for power circuit

Enclosure

Open type

Storage and transportation temperature

-25 Â°C

Rated surrounding temperature range without derating

-5 Â°C

Humidity

5...95% noncondensing

Operating temperature

Open: -5 to 50 Â°C (23 to 122 Â°F)

EMC emission levels

Radiated emission: Class A per IEC

EMC immunity levels

Surge transient: per EN/IEC 60947-4-2 per IEC

Altitude

2000 m

Pollution degree

Repairable

REPAIRABLE

Preferred Availability

false

Quick Turnaround

false

Dimension Height

35.56

Lead Time

Dimension Width

40.64

Dimension Length

71.12

Stock Status

STOCKED

Weight Unit
