2090-CSBM1DF-18AA22

Name: 2090-CSBM1DF-18AA22
Brand: ROCKWELL
SKU: 2090-CSBM1DF-18AA22

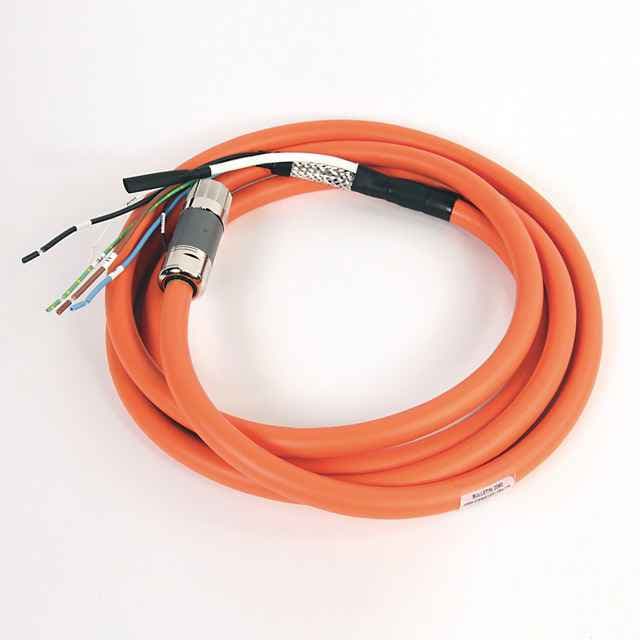

The Allen Bradley 2090-CSBM1DF-18AA22 is a reliable single motor power cable with 18 AWG wire, a SpeedTec DIN connector, and optimized for Kinetix 5500 drives. Suitable for continuous-flex applications in demanding industrial environments.

Product Model2090-CSBM1DF-18AA22

Product ID108611

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. High-Quality ConstructionThe 2090-CSBM1DF-18AA22 is built with high-quality materials, ensuring durability and reliability in demanding industrial environments.
2
2. Optimized for Kinetix 5500 DrivesDesigned specifically for Kinetix 5500 drives, this cable ensures seamless integration and optimal performance.
3
3. Continuous-Flex CapabilityWith a continuous bend radius of 10 times the cable diameter, this cable is suitable for extensive flexing applications, reducing the risk of damage.
4
4. SpeedTec DIN ConnectorEquipped with a SpeedTec DIN connector, this cable provides efficient and secure connections, enhancing overall system performance.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Accessory Component

Single DSL

Cable Style

Standard, Non-flex

Drive-end Connector Type

Flying Lead at 5500 Drive End

Outer diameter approx.

15 mm

Core colour

White

Cable length

22 m

5. Halogen-Free PUR JacketThe halogen-free PUR jacket ensures excellent electrical insulation and meets stringent safety standards, making it ideal for use in various industrial settings.

Drive-end connector type

Drive-end, without connector kit, flying-lead (optimized for Kinetix 5500)

With protective conductor

Yes

Core identification

Colour

Colour outer sheath

Orange

Conductor material

Copper

Conductor surface

Tinned

Color cable code

RAL2003

Core color

White/blue

Motor-end connector type

Single speedTec DIN connector

AWG size

18 AWG

Nominal voltage U

1000

Cable type

Single motor power with brake wires

Cable description

Power with brake wires: 1000V hybrid cable with four power, two ftdback (digital communication), and two brake conductors

Nominal cross section conductor

0.82

Nominal cross section conductor (AWG)

1.62

Cable style

Standard, non-flexible

Weight, approx

Continuous-flex, power with brake wire: 0.228 kg/m

Twisted cores

Accessory component

Cable

Static bend radius

Standard (non-flex) and continuous flex: 7 times the cable diam

Features

Low capacitance design to maximize system power density, speedtec connection system, encoder communication data pair with noise rejection, TPE jacket with mechanical and chemical properties, cable features overall tinned copper braid with aluminum/pol

Max. conductor temperature

105

Repairable

NOT_REPAIRABLE

Preferred Availability

false

Quick Turnaround

false

Dimension Height

25.806

Lead Time

Dimension Width

31.699

Dimension Length

35.509

Stock Status

NON_STOCKED

Weight

6.482

Weight Unit
