1606-XLE480ECRZ

Name: 1606-XLE480ECRZ
Brand: ROCKWELL
SKU: 1606-XLE480ECRZ

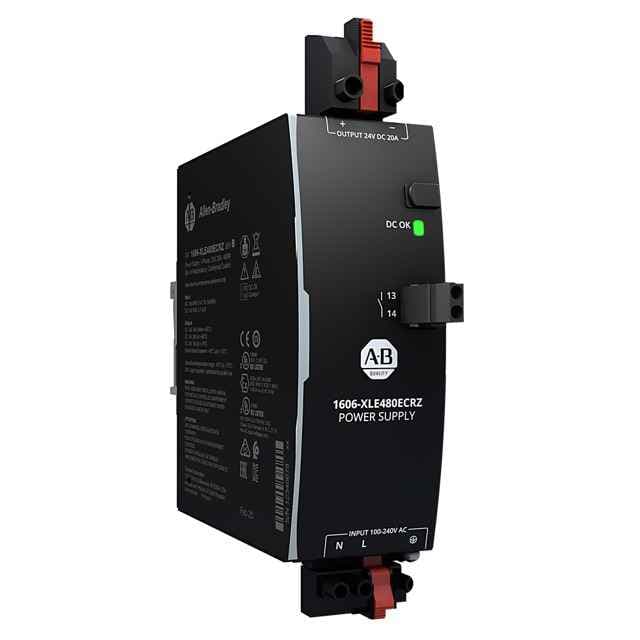

The Allen Bradley 1606-XLE480ECRZ is a 480W DIN rail power supply featuring built-in redundancy and conformal coating. It ensures high reliability and efficiency in critical applications.

Product Model1606-XLE480ECRZ

Product ID108549

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. High Power OutputThe 1606-XLE480ECRZ delivers a robust 480W power output, making it suitable for demanding applications.
2
2. Built-in RedundancyThis power supply includes built-in redundancy options, ensuring continuous operation even in case of component failure, thereby enhancing system reliability.
3
3. Conformal CoatingThe product features conformal coating, which protects the electronics from environmental factors like moisture and dust, extending the lifespan of the device.
4
4. DIN Rail MountingDesigned for easy installation on DIN rails, this power supply is perfect for space-constrained industrial environments.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Nominal value output voltage 1

24 V

Secondary voltage adjustable

Nominal value output current 1

20 A

Power output

480 W

Voltage type of supply voltage

AC/DC

Rated supply voltage at AC 50 Hz

100 V

5. Efficient OperationWith its high MTBF (Mean Time Between Failures) specification and efficient design, the 1606-XLE480ECRZ minimizes heat buildup and ensures reliable operation over extended periods.

Rated supply voltage at AC 60 Hz

Rated supply voltage at DC

110 V

Power reserves

20 %

DC OK relay contact

Yes

Hot-swap

Yes

Input inrush current limiter

Active

Power factor

0.95 typical

External input fuse, min

B-10 A or C-10 A

Power losses

24.2 W typical

Derating

12 W/Â°C

Efficiency

95.2 % typical

Input inrush current

10 A/4.5 A

Output voltage stabilized

Yes

Rail mounting possible

Yes

Stabilized

Yes

Adjustment range

Fixed

Height

124 mm

Depth

127 mm

Direct mounting possible

Width

48 mm

Degree of protection (IP)

IP20

Type of electric connection

Plug-in connection

MTBF

543 kh (+40 Â°C, SN29500)

Wall mounting possible

Yes

Ripple and noise, max

50 mV

Operating temperature

-40 Â°C

Lifetime, min

90 kh (+40 Â°C)

Weight

0.744

Repairable

NOT_REPAIRABLE

Preferred Availability

false

Quick Turnaround

false

Dimension Height

9.144

Lead Time

Dimension Width

13.97

Dimension Length

15.24
