Compact, high-efficiency 3-phase power supply with 240W output and 24-28V DC voltage range. Ideal for harsh environments with conformal coated circuit boards and DIN rail mounting.

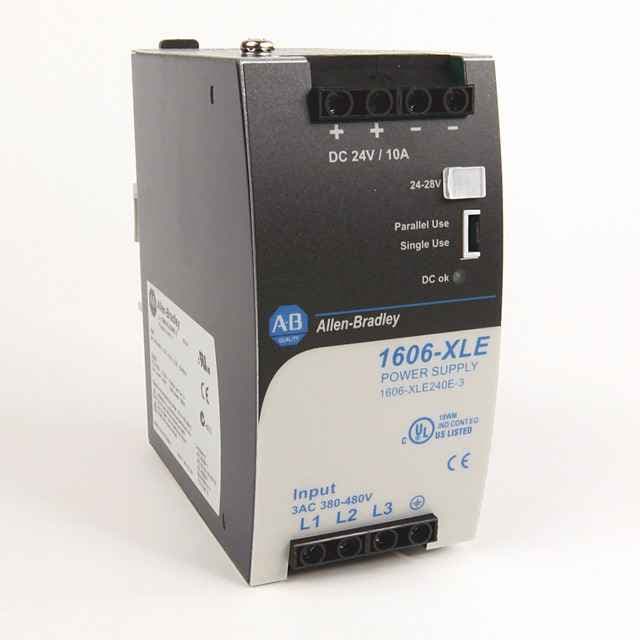

Product Model1606-XLE240E-3
Product ID108520
Stock on Request
Last updated: 8/29/2026
Key Features
1
1. Compact DesignThe 1606-XLE240E-3 is ultra-slim, making it perfect for space-constrained applications. Its dimensions are 62 mm (width) x 124 mm (height) x 117 mm (depth).
2
2. High EfficiencyEquipped with a synchronous rectifier, this power supply achieves an efficiency of up to 92.9%, reducing energy consumption and costs.
3
3. Harsh Environment CapabilityDesigned to operate in harsh environments, the device features conformal coated circuit boards, ensuring reliability even in areas with high humidity or extreme temperatures.
4
4. Wide Input RangeThe power supply accepts a wide range of AC input voltages from 380 to 480V, making it versatile for various applications.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Efficiency
92.8 % typical
Input Circuit Protection
6 A Slow Blow Fuse or?Cat. No. 1489-A3C060
Input Voltage Range
380-480V AC
Output Voltage Range
24 -28V DC
Nominal value output voltage 1
24 V
Secondary voltage adjustable
Yes
5. Power Reserve and Overload ProtectionThe device includes a 20% power reserve, which can be used continuously at temperatures up to 45°C (113°F). Additionally, it can deliver three times the nominal output current for 10 ms to trip fuses on faulty output branches.
6
6. Easy InstallationThe power supply is designed for easy installation with screw terminals and is suitable for both field and factory wiring. It also includes an input-transient blanking circuit for smooth operation.
