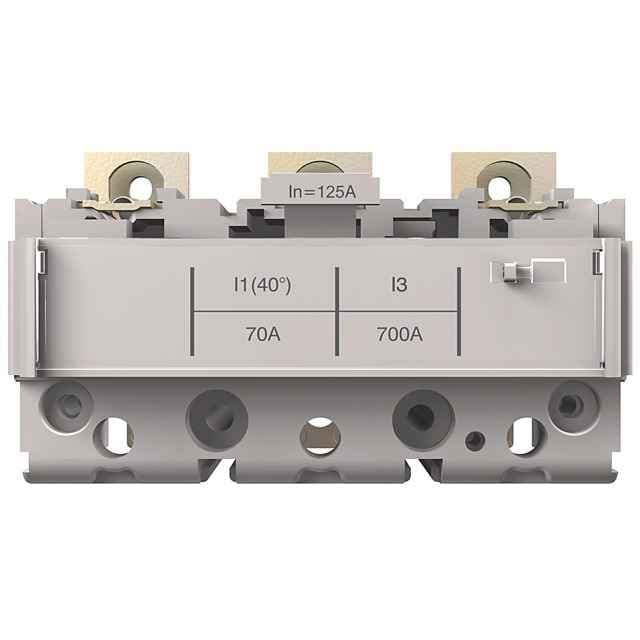

The Allen Bradley 140G-HTC3-C70 is a 125A frame thermal magnetic trip unit, offering reliable circuit protection and meeting UL489, CSA22.2 No. 5, and IEC 60947-2 standards.
Product Model140G-HTC3-C70
Product ID108491
Stock on Request
Last updated: 8/29/2026
Key Features
1
1. Comprehensive Safety Standards ComplianceThe 140G-HTC3-C70 meets UL489, CSA22.2 No. 5, and IEC 60947-2 standards, ensuring it adheres to rigorous safety protocols for electrical circuit protection.
2
2. High Current RatingWith a current rating of 125A, this trip unit is designed to handle high electrical loads, making it suitable for demanding industrial applications.
3
3. Thermal Magnetic ProtectionEquipped with thermal magnetic protection, the 140G-HTC3-C70 provides both thermal and magnetic trip functions, ensuring comprehensive protection against overcurrent conditions.
4
4. Compact DesignThe compact design of the 140G-HTC3-C70 makes it easy to integrate into various electrical panels, saving space without compromising on performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Protection
Thermal Magnetic
Standards Compliance
UL489, CSA22.2 No. 5, IEC 60947-2
Trip Unit Rating
70A
Current
125 A
Repairable
NOT_REPAIRABLE
Preferred Availability
false
5
5. Reliability and DurabilityBuilt with high-quality materials, the 140G-HTC3-C70 is designed for long-lasting performance and reliability, reducing the need for frequent replacements and maintenance.
Quick Turnaround
false
Dimension Height
9.093
Lead Time
42
Dimension Width
16.612
Dimension Length
10.795
Stock Status
NON_STOCKED
Weight
0.465
Weight Unit
KG
Dimension Unit
CM
