2090-CSBM1DF-18AF38

Name: 2090-CSBM1DF-18AF38
Brand: ROCKWELL
SKU: 2090-CSBM1DF-18AF38

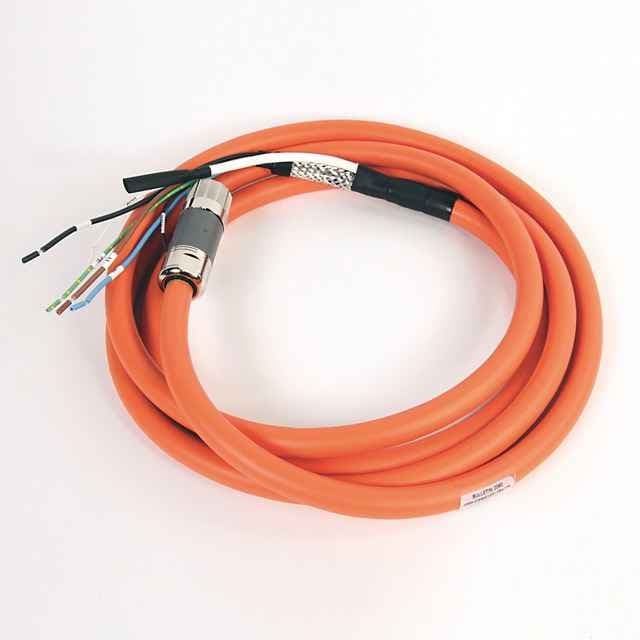

The Allen Bradley 2090-CSBM1DF-18AF38 is a continuous-flex power and feedback cable designed for Kinetix 5500 drives. It features 18 AWG wire, a 1000V hybrid design, and a durable TPE jacket, making it ideal for demanding industrial environments.

Product Model2090-CSBM1DF-18AF38

Product ID108404

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. Continuous FlexibilityDesigned for continuous bending, this cable ensures reliable performance in dynamic applications.
2
2. High-Voltage CapabilityWith a nominal voltage of 1000V, it supports high-power transmission in industrial settings.
3
3. Durable ConstructionThe cable features a durable TPE jacket and tinned copper braid for enhanced mechanical and chemical properties.
4
4. Optimized for Kinetix 5500Specifically optimized for use with Kinetix 5500 drives, ensuring seamless integration and performance.
5
5. Enhanced Communication

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Accessory Component

Single DSL

Cable Style

Continuous-flex

Motor-end Connector Type

Single SpeedTec DIN Connector

Outer diameter approx.

15 mm

Core colour

White

Cable length

38 m

Includes two feedback conductors for digital communication, ensuring accurate and reliable data transmission.

Drive-end connector type

Drive-end, without connector kit, flying-lead (optimized for Kinetix 5500)

With protective conductor

Yes

Core identification

Colour

Colour outer sheath

Orange

Conductor material

Copper

Conductor surface

Tinned

Color cable code

RAL2003

Core color

White/blue

Motor-end connector type

Single speedTec DIN connector

AWG size

18 AWG

Nominal voltage U

1000

Cable type

Single motor power with brake wires

Cable description

Power with brake wires: 1000V hybrid cable with four power, two ftdback (digital communication), and two brake conductors

Nominal cross section conductor

0.82

Nominal cross section conductor (AWG)

1.62

Cable style

Continuous-flexible

Weight, approx

Continuous-flex, power with brake wire: 0.228 kg/m

Twisted cores

Accessory component

Cable

Continuous bend radius

Continuous flex: 10 times the cable diam

Features

Low capacitance design to maximize system power density, speedtec connection system, encoder communication data pair with noise rejection, TPE jacket with mechanical and chemical properties, cable features overall tinned copper braid with aluminum/pol

Max. conductor temperature

105

Repairable

NOT_REPAIRABLE

Preferred Availability

false

Quick Turnaround

false

Dimension Height

32.995

Lead Time

Dimension Width

40.005

Dimension Length

40.005

Stock Status

NON_STOCKED

Weight

12.78

Weight Unit

Dimension Unit
