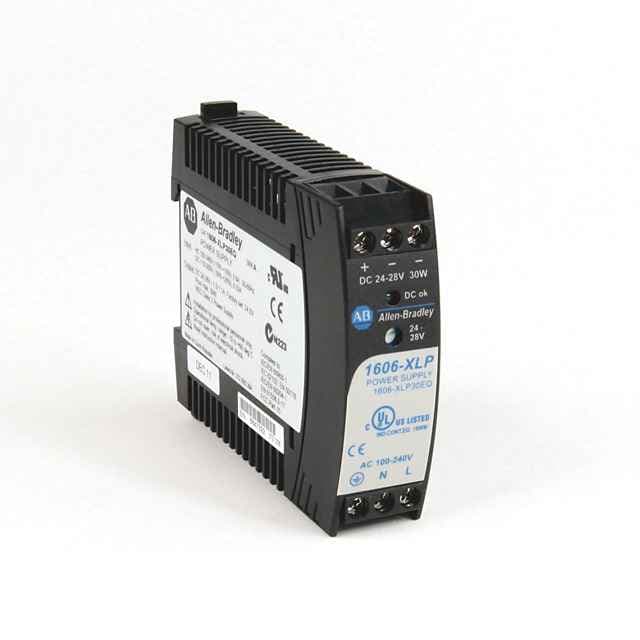

Compact, adjustable output voltage (24-28V), high efficiency (up to 89.4%), and robust design make the Allen Bradley 1606-XLP30EQ ideal for industrial applications.
Product Model1606-XLP30EQ
Product ID108278
Stock on Request
Last updated: 8/29/2026
Key Features
1
1. Compact DesignThe 1606-XLP30EQ features a compact design, measuring only 22.5mm in width, making it perfect for space-constrained industrial environments.
2
2. Adjustable Output VoltageThis power supply offers an adjustable output voltage range of 24-28V, providing flexibility for various industrial applications.
3
3. High EfficiencyWith an efficiency of up to 89.4%, the 1606-XLP30EQ minimizes energy losses and maximizes power delivery, reducing operational costs.
4
4. Robust DesignBuilt with rugged electrical and mechanical components, this power supply ensures reliable output power even in harsh industrial environments.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Input Voltage Range
100-240V AC/110-300V DC
Output Voltage Range
24 -28V DC
Height
75 mm
Depth
91 mm
Direct mounting possible
No
Width
22.5 mm
5. Wide Input Voltage RangeThe 1606-XLP30EQ supports a wide input voltage range of 100-240V AC, making it adaptable to various power grid conditions worldwide.
Degree of protection (IP)
IP20
Type of electric connection
Screw connection
Shock
30 G, 6 ms 20G, 11 ms
Special functions
No special function
MTBF
2405000 hr @ 40 °C, SN 29500
Wall mounting possible
Yes
Degree of protection (NEMA)
Other
Vibration
2 g
Secondary voltage adjustable
Yes
Power output
30 W
Voltage type of supply voltage
AC/DC
Rated supply voltage at DC
85 V
Efficiency, typ
89.4 %
Adjustment range
24 V
Operational range
85...264V AC
Rated output current
1.3A @ 24V
Phases
1-phase
Sub group
Compact family
Hold-up time
>31 ms @ 100V AC
Input voltage
100â¦240V AC
Special family function
No power boost
Rated input current
<0.54A @ 100V AC
Special feature
-
Output voltage stabilized
Yes
Rail mounting possible
Yes
Stabilized
Yes
Ripple and noise, max
50 mV
Operating temperature
-10 °C
Storage temperature
-40 °C
Relative humidity
5 to 95 %
Weight
140.0
Repairable
NOT_REPAIRABLE
Preferred Availability
true
Quick Turnaround
false
Dimension Height
22.5
Lead Time
5
Dimension Width
91.0
Dimension Length
75.0
Stock Status
STOCKED
Weight Unit
G
Dimension Unit
MM
