Fast, isolated DC digital output module for ControlLogix systems. 16 individually isolated outputs, 10-30V DC, ideal for high-speed applications.

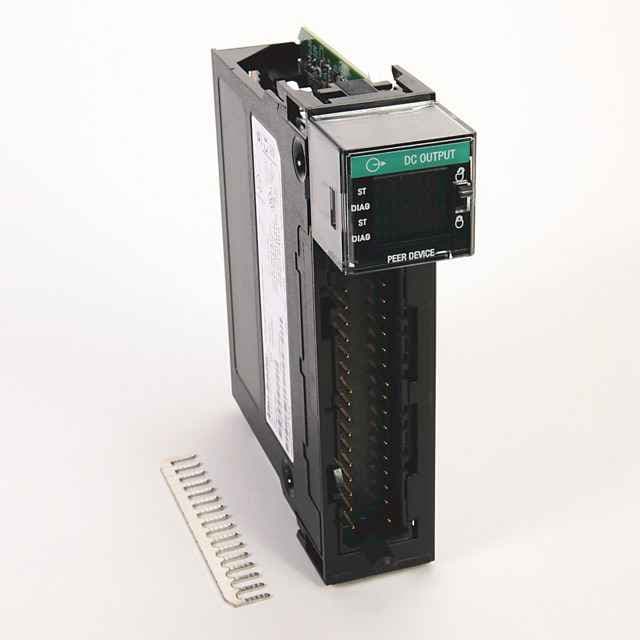

Product Model1756-OB16IEF
Product ID108175
Stock on Request
Last updated: 8/29/2026
Key Features
1
1. Fast and Reliable Output ControlThe 1756-OB16IEF provides ultra-fast on/off times with a nominal 15μS, ensuring quick and reliable output control in your industrial automation systems.
2
2. Individually Isolated OutputsEach of the 16 outputs is individually isolated, providing a high level of safety and preventing any potential electrical interference or damage.
3
3. Wide Operating Voltage RangeThe module operates within a wide voltage range of 10-30V DC, making it versatile for various industrial applications.
4
4. High Current CapacityWith a current draw of up to 1 A per channel, the module can handle demanding load requirements, ensuring consistent performance in high-current applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Communication
Ultra Fast On,Off times(15uS nominal)
Repairable
REPAIRABLE
Preferred Availability
false
Quick Turnaround
false
Dimension Height
5.512
Lead Time
5
5
5. Compact and Efficient DesignThe open-style enclosure design makes the module compact and efficient, reducing space requirements in your control system while maintaining high performance capabilities.
Dimension Width
17.805
Dimension Length
22.301
Stock Status
STOCKED
Weight
0.342
Weight Unit
KG
Dimension Unit
CM
