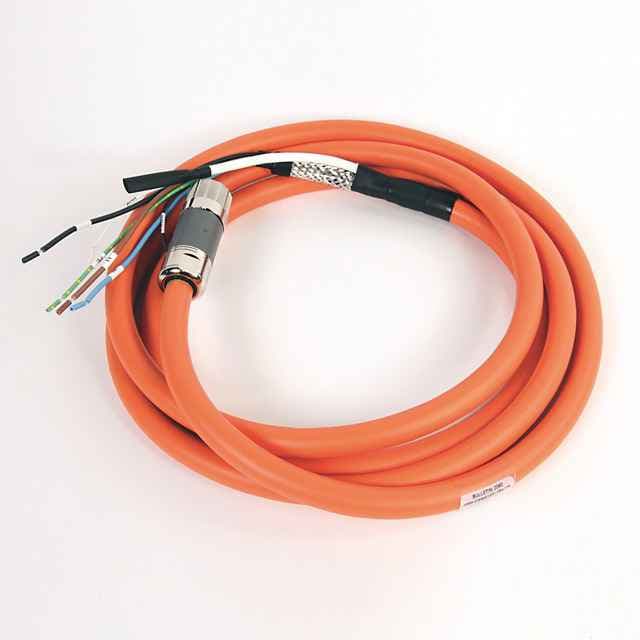

High-performance hybrid cable for continuous-flex applications, optimized for Kinetix systems. Features 18 AWG, 1000V, and includes power, feedback, and brake conductors.
Product Model2090-CSBM1DF-18AF28
Product ID108158
Stock on Request
Last updated: 8/29/2026
Key Features
1
1. High-Performance Design"Maximize system power density with our low capacitance design, ensuring efficient energy transmission and minimizing signal loss."
2
2. Continuous-Flex Capability"Designed for continuous-flex applications, this cable maintains its performance even in the most demanding environments."
3
3. Optimized for Kinetix Systems"Optimized for use with Kinetix systems, ensuring seamless integration and compatibility for your industrial automation needs."
4
4. Robust Construction"Featuring 18 AWG copper conductors with a tinned surface, this cable provides reliable and durable performance in harsh industrial conditions."
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Accessory Component
Single DSL
Cable Style
Continuous-flex
Drive-end Connector Type
Drive-end, flying-lead
Outer diameter approx.
15 mm
Core colour
White
Cable length
28 m
5. Advanced Communication"Includes two feedback (digital communication) conductors and two brake conductors, enabling advanced communication and control capabilities."
Drive-end connector type
Drive-end, without connector kit, flying-lead (optimized for Kinetix 5500)
Number of cores
8
With protective conductor
Yes
Core identification
Colour
Colour outer sheath
Orange
Conductor material
Copper
Conductor surface
Tinned
Color cable code
RAL2003
Core color
White/blue
Motor-end connector type
Single speedTec DIN connector
AWG size
18 AWG
Nominal voltage U
1000
Cable type
Single motor power with brake wires
Cable description
Power with brake wires: 1000V hybrid cable with four power, two ftdback (digital communication), and two brake conductors
Nominal cross section conductor
0.82
Nominal cross section conductor (AWG)
1.62
Cable style
Continuous-flexible
Weight, approx
Continuous-flex, power with brake wire: 0.228 kg/m
Twisted cores
No
Accessory component
Cable
Continuous bend radius
Continuous flex: 10 times the cable diam
Features
Low capacitance design to maximize system power density, speedtec connection system, encoder communication data pair with noise rejection, TPE jacket with mechanical and chemical properties, cable features overall tinned copper braid with aluminum/pol
Max. conductor temperature
105
Repairable
NOT_REPAIRABLE
Preferred Availability
false
Quick Turnaround
false
Dimension Height
37.0
Lead Time
39
Dimension Width
31.501
Dimension Length
31.999
Stock Status
NON_STOCKED
Weight
8.6
Weight Unit
KG
Dimension Unit
CM
