2090-CSBM1DF-14AA35

Name: 2090-CSBM1DF-14AA35
Brand: ROCKWELL
SKU: 2090-CSBM1DF-14AA35

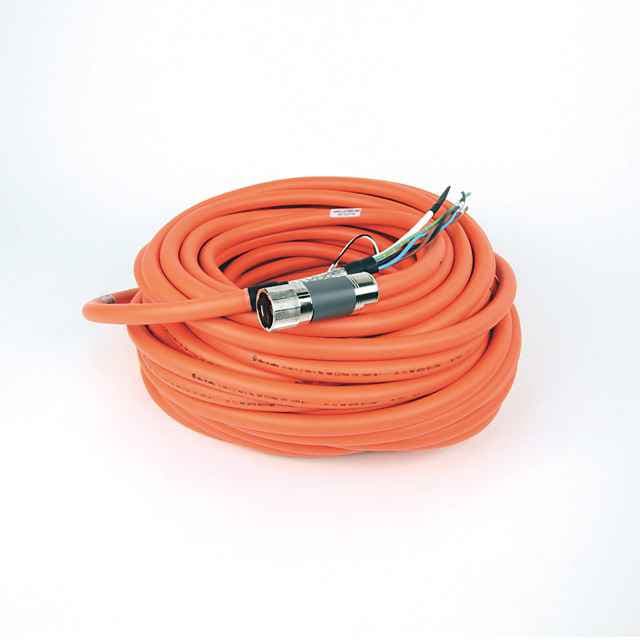

The Allen-Bradley 2090-CSBM1DF-14AA35 is a high-quality, single DSL cable designed for Kinetix 5500 drives. It includes power, feedback, and brake wires, ensuring reliable performance in industrial applications. With a 14 AWG wire and a non-flex, 35-meter cable, this cable is ideal for demanding motor control systems.

Product Model2090-CSBM1DF-14AA35

Product ID108057

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. Reliable PerformanceThe Allen-Bradley 2090-CSBM1DF-14AA35 is engineered to provide consistent performance in industrial environments, ensuring your motor control systems operate efficiently.
2
2. Versatile ApplicationDesigned for power, feedback, and brake applications, this cable is versatile and can be used in a variety of industrial settings, including manufacturing and automation.
3
3. High-Quality MaterialsConstructed with a 14 AWG wire and featuring a tinned copper braid with aluminum/polyester tape for excellent EMC/EMI performance, this cable is built to last.
4
4. Optimized for Kinetix 5500 DrivesThe SpeedTec DIN connector and flying lead design make this cable specifically optimized for use with Kinetix 5500 drives, ensuring seamless integration and performance.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Accessory Component

Single DSL

Cable Style

Standard, Non-flex

Drive-end Connector Type

Flying Lead at 5500 Drive End

Motor-end Connector Type

Single SpeedTec DIN Connector

Outer diameter approx.

Core colour

White

5. Durable DesignWith a non-flex, 35-meter cable, this product is designed to withstand the rigors of industrial environments, providing a durable solution for your motor control needs.

Cable length

35 m

Drive-end connector type

Drive-end, without connector kit, flying-lead (optimized for Kinetix 5500)

Number of cores

With protective conductor

Yes

Core identification

Colour

Colour outer sheath

Orange

Conductor material

Copper

Conductor surface

Tinned

Color cable code

RAL2003

Core color

White/blue

Motor-end connector type

Single speedTec DIN connector

AWG size

Nominal voltage U

1000

Cable type

Single motor power with brake wires

Cable description

Power with brake wires: 1000V hybrid cable with four power, two ftdback (digital communication), and two brake conductors

Nominal cross section conductor

2.08

Nominal cross section conductor (AWG)

4.1

Cable style

Standard, non-flexible

Weight, approx

Continuous-flex, power with brake wire: 0.289 kg/m

Twisted cores

Accessory component

Cable

Static bend radius

Standard (non-flex) and continuous flex: 7 times the cable diam

Features

Low capacitance design to maximize system power density, speedtec connection system, encoder communication data pair with noise rejection, TPE jacket with mechanical and chemical properties, cable features overall tinned copper braid with aluminum/pol

Max. conductor temperature

105

Repairable

NOT_REPAIRABLE

Preferred Availability

false

Quick Turnaround

false

Dimension Height

33.655

Lead Time

Dimension Width

40.005

Dimension Length

26.67

Stock Status

NON_STOCKED

Weight

15.422

Weight Unit
