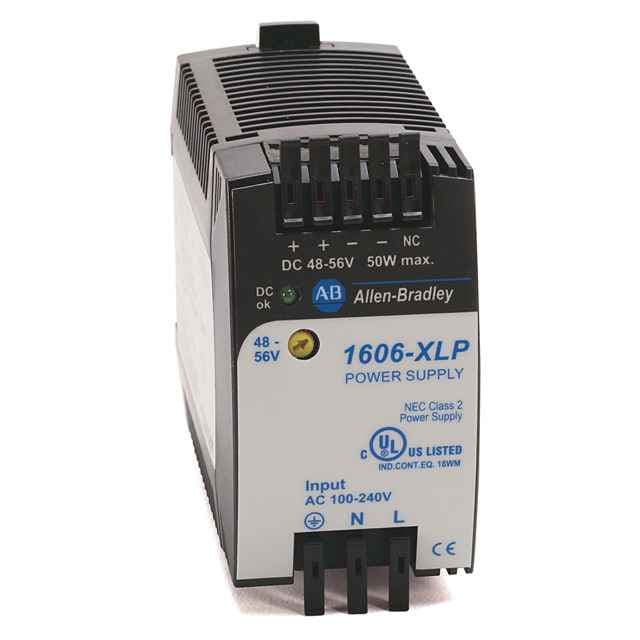

Compact, efficient, and reliable, the Allen Bradley 1606-XLP50EZ power supply offers adjustable DC output, wide input voltage range, and exceptional overload design.
Product Model1606-XLP50EZ
Product ID107915
Stock on Request
Last updated: 8/29/2026
Key Features
1
1. Compact DesignThe 1606-XLP50EZ is designed to save space, making it perfect for applications where size is a concern. Its dimensions are 45 x 75 x 91mm, ensuring it fits seamlessly into any setup.
2
2. Wide Input Voltage RangeThis power supply supports a wide input voltage range of AC 100...240V, with admissible limits of AC 85...264V and DC 85...375V. This flexibility makes it suitable for various global applications.
3
3. Adjustable DC OutputThe 1606-XLP50EZ offers an adjustable DC output voltage of 24...28V, providing flexibility in meeting different application requirements.
4
4. Exceptional Overload DesignThe power supply features an exceptional overload design, allowing it to handle up to 1.5 times the nominal current without switching off. This ensures reliable operation even under heavy loads.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Product Family
Power Supply XLP
Height
75 mm
Depth
91 mm
Direct mounting possible
No
Width
45 mm
Degree of protection (IP)
IP20
5
5. High Efficiency and ReliabilityWith an efficiency of 88.5% and a Mean Time Between Failures (MTBF) of approximately 600,000 hours, the 1606-XLP50EZ is built for high reliability and efficiency. It undergoes rigorous testing to ensure quality and performance.
Type of electric connection
Spring clA connection
Shock
30 G, 6 ms 20G, 11 ms
Special functions
Plug / removable terminals
MTBF
2613000 hr @ 40 °C, SN 29500
Wall mounting possible
Yes
Degree of protection (NEMA)
Other
Vibration
2 g
Secondary voltage adjustable
Yes
Power output
50 W
Voltage type of supply voltage
AC/DC
Rated supply voltage at DC
85 V
Efficiency, typ
89 %
Adjustment range
24 V
Operational range
85...264V AC
Rated output current
2.1A @ 24.5V
Phases
1-phase
Sub group
Compact family
Hold-up time
>171 ms @ 230V AC
Input voltage
100â¦240V AC
Special family function
No power boost
Rated input current
<1.0A @ 100V AC
Special feature
Parallel option
Output voltage stabilized
Yes
Rail mounting possible
Yes
Stabilized
Yes
Ripple and noise, max
50 mV
Operating temperature
-10 °C
Storage temperature
-40 °C
Relative humidity
5 to 95 %
Weight
0.329
Repairable
NOT_REPAIRABLE
Preferred Availability
false
Quick Turnaround
false
Dimension Height
6.299
Lead Time
46
Dimension Width
13.995
Dimension Length
15.189
Stock Status
NON_STOCKED
Weight Unit
KG
Dimension Unit
CM
